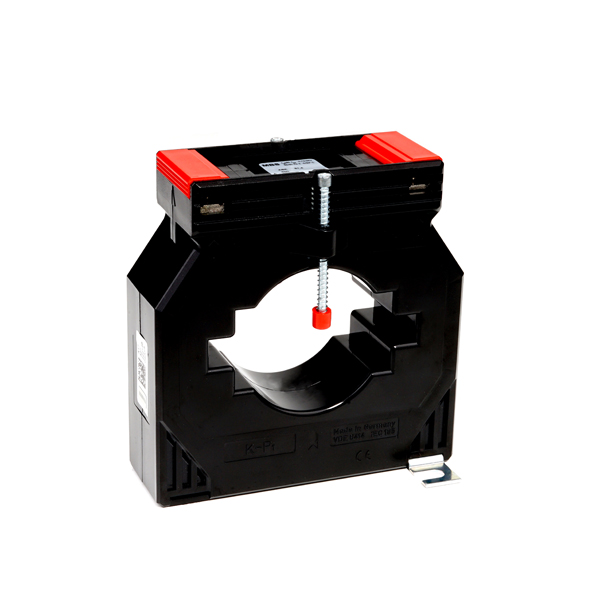

ASK 81.4 1250/1A CT cl 1
SKU: 21264
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General details:
Class of isolation: E.
Um 0.72 kV is the maximum operational voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the overcurrent limiting factor up to a notional current of 1500 A.
MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (1A secondary - class 1),
ASK 81.4 current transformers,
MODEL ASK 81.4,
RATIO 1250/1A,
ROUND CONDUCTOR (⌀) 55 mm,
PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
DESCRIPTION Standard current transformer,
CLASS 1,
VA 15,
DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 40
