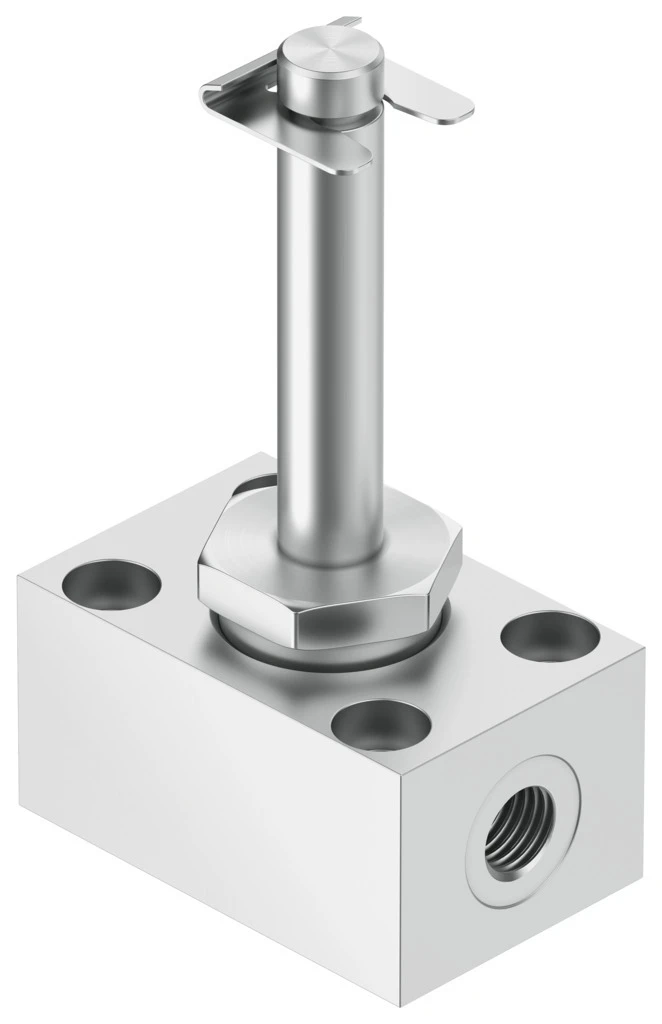

Solenoid valve, MC-2-1/8

Specifications • Solenoid valve • Valve function 2/2-way, closed, monostable • Type of actuation Electric • Standard nominal flow rate (standardised to DIN 1343) 300 l/min • Pneumatic working port G1/8 • Operating pressure -0.095 MPa ... 0.7 MPa • Operating pressure -0.95 bar ... 7 bar • Design Poppet valve with spring return • Type of reset Mechanical spring • Degree of protection IP65 • Nominal size 4 mm • Sealing principle Soft • Manual override None
