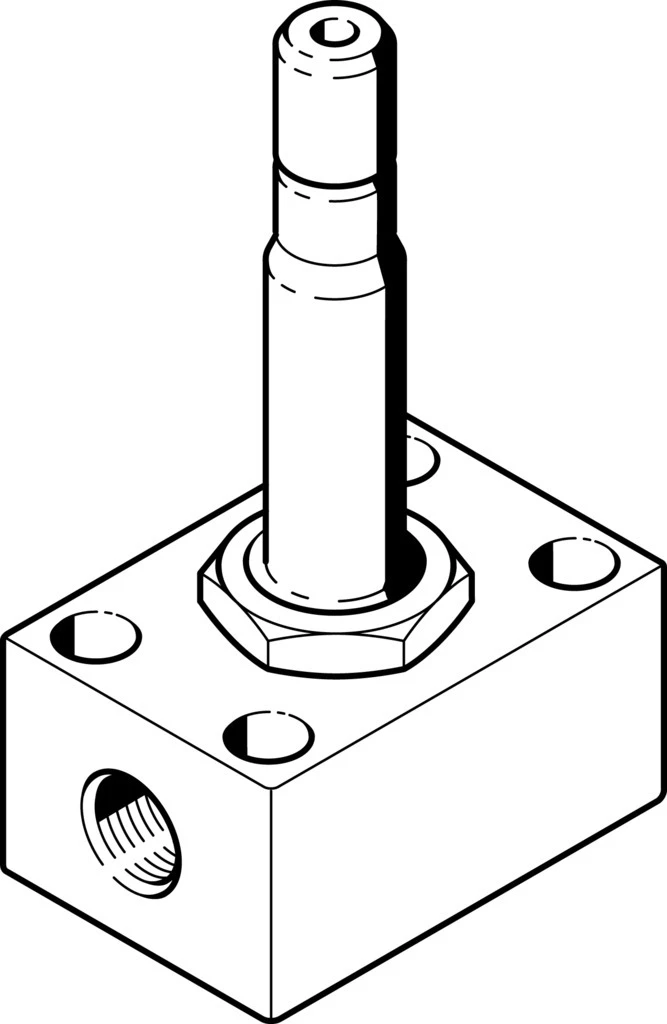

Solenoid valve, MCH-3-1/8

Specifications • Solenoid valve • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Standard nominal flow rate (standardised to DIN 1343) 160 l/min • Pneumatic working port G1/8 • Operating pressure 0 MPa ... 0.7 MPa • Operating pressure 0 bar ... 7 bar • Design Poppet valve with spring return • Type of reset Mechanical spring • Degree of protection IP65 • Nominal size 2.5 mm • Sealing principle Soft • Manual override Detenting • Type of piloting Direct
