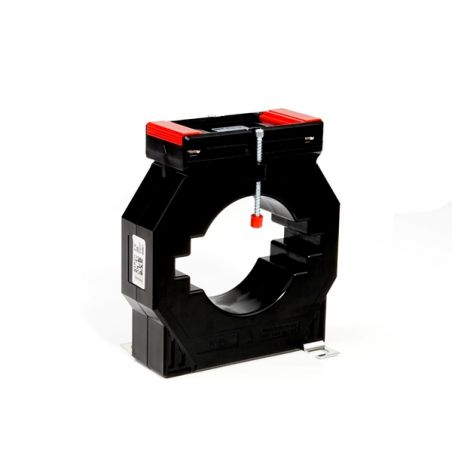

ASK 101.4 1600/5A CT 30VA
SKU: 22062
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers for current Broad parameters:
E is the isolation class.
Up to 0.72 kV is the maximum operating voltage.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (5A secondary - class 1),
ASK 101.4 current transformers,
MODEL ASK 101.4,
RATIO 1600/5A,
ROUND CONDUCTOR (⌀) 70 mm,
PRIMARY BAR CONDUCTOR 100 X 10 / 80 X 30 mm,
DESCRIPTION Standard current transformer,
CLASS 1,
VA 30,
DIMENSIONS (MM) (H) 144 x (W) 130 x (D) 40
