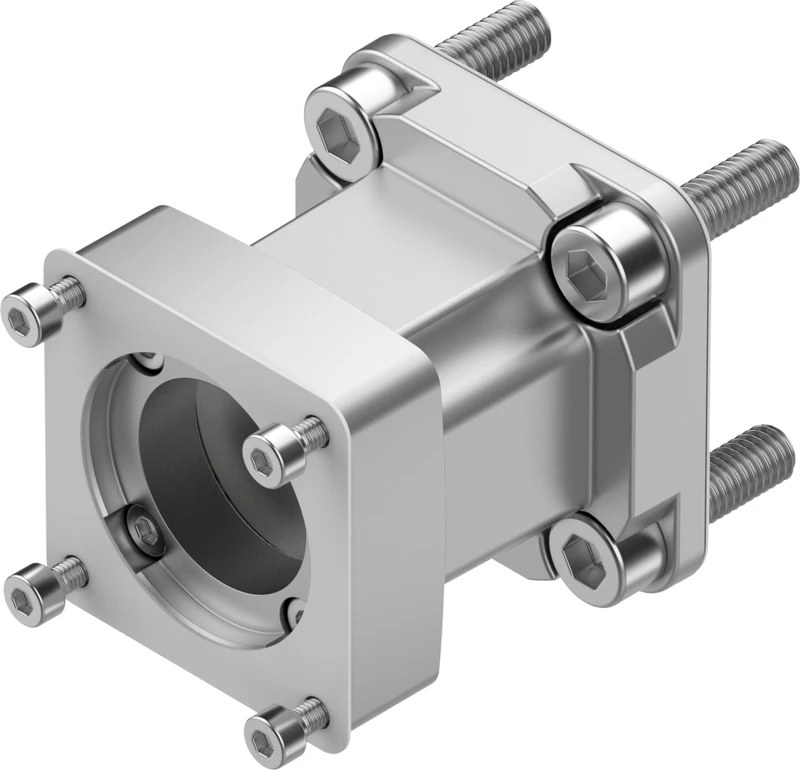

Axial kit, EAMM-A-D32-40P-S1
SKU: 2207372
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Axial kits EAMM-A
• Nominal length 45.5 mm
• Mounting position optional
• Max. rotational speed 10000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 0.28 kgmm²
• Transmittable torque 1.6 Nm
• Product weight 160 g
• Interface code, actuator D32
• Interface code, motor in 40P
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Axial kits EAMM-A
• Nominal length 45.5 mm
• Mounting position optional
• Max. rotational speed 10000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 0.28 kgmm²
• Transmittable torque 1.6 Nm
• Product weight 160 g
• Interface code, actuator D32
• Interface code, motor in 40P
• Note on materials RoHS-compliant
