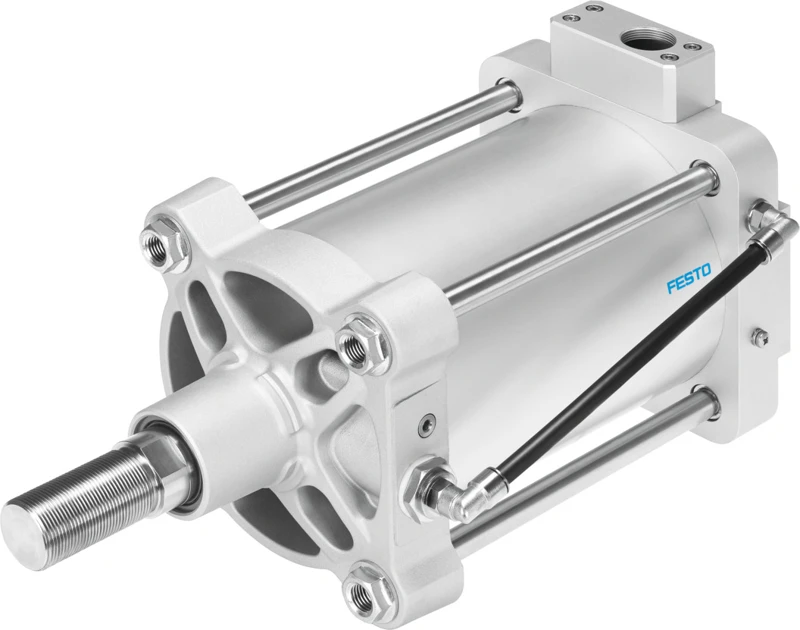

Linear drive, DFPI-160- ... -ND2P-E-NB3P
SKU: 2208573
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear actuators DFPI
• Size of valve actuator 160
• Stroke 40 mm ... 990 mm
• Piston diameter 160 mm
• Based on standard ISO 15552
• Cushioning No cushioning
• Mounting position optional
• Mode of operation Double-acting
• Design Piston, Piston rod, Tie rod, Cylinder barrel
• Position detection With integrated displacement encoder
• Symbol 00992807
• Functional principle of measuring system Potentiometer
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 12064 N
Buy currently uses Select Automation shop pricing and checkout.
Linear actuator with displacement encoder DFPI
• Easy to install, sturdy and reliable in use, the corrosion-resistant linear actuator DFPI to ISO 15552 has a built-in linear potentiometer or fully integrated positioner.
• Mounting interfaces to ISO 15552 on bearing and end caps
• Sturdy tie rod design
• Integrated air supply
• Optionally with integrated displacement encoder or fully integrated positioner
• IP65, IP67, IP69K, NEMA4
• To EU Explosion Protection Directive (ATEX)
