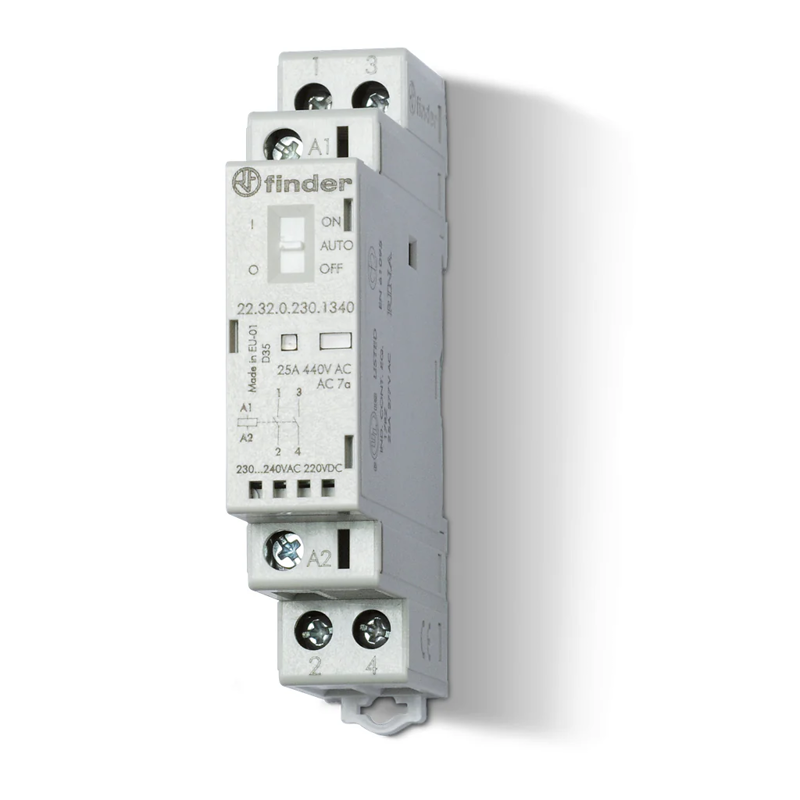

25A 2NC MODULAR CONTACTOR 12VAC/DC
SKU: 223200124440
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
22 modular contactors in series:
Auto-Off/Auto-On selector.
Constant duty coils and contacts.
AC/DC silent coil (protected by varistor).
LED indicators and a mechanical flag are standard.
Auxiliary contact module that can be clipped on (1NO+1NC or 2NO).
strengthened insulation serving as a protective barrier between the coil and the contacts.
Buy currently uses Select Automation shop pricing and checkout.
SERIES 22:
RATED POWER AC-1 (A): 25A
RATED POWER AC-3 kW (230V): 1.0 kw (single phase motor rating)
NUMBER OF POLES: 2
DESCRIPTION: Modular contactor
MOUNTING: Modular DIN rail mount
MODULES WIDTH IN 17.5 MM: 1
CONTACT CONFIGURATON: 2 NC
COIL VOLTAGE AC/DC: 12V.
DIMENSIONS (MM): (H) 89 x (W) 17.5 x (D) 61
