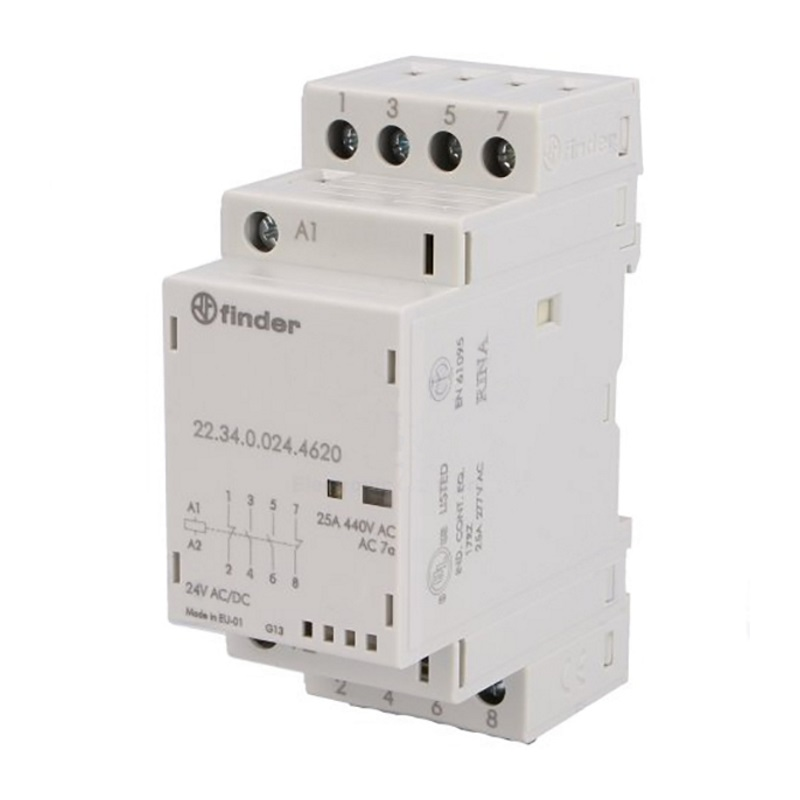

25A 2NO+2NC MODULAR CONTACTOR 24VAC/DC 223400244640
SKU: 223400244640
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
22 modular contactors in series:
Auto-Off/Auto-On selector.
Constant duty coils and contacts.
AC/DC silent coil (protected by varistor).
LED indicators and a mechanical flag are standard.
Auxiliary contact module that can be clipped on (1NO+1NC or 2NO).
Strengthened insulation serving as a protective barrier between the coil and the contacts.
Buy currently uses Select Automation shop pricing and checkout.
SERIES 22:
RATED POWER AC-1 (A): 25A
RATED POWER AC-3 kW (230V): 1.0 kw (single phase motor rating)
NUMBER OF POLES: 4
DESCRIPTION: Modular contactor
MOUNTING: Modular DIN rail mount
MODULES WIDTH IN 17.5 MM: 2
CONTACT CONFIGURATON: 2NO + 2NC.
COIL VOLTAGE AC/DC: 24V.
DIMENSIONS (MM): (H) 89 x (W) 35 x (D) 61
