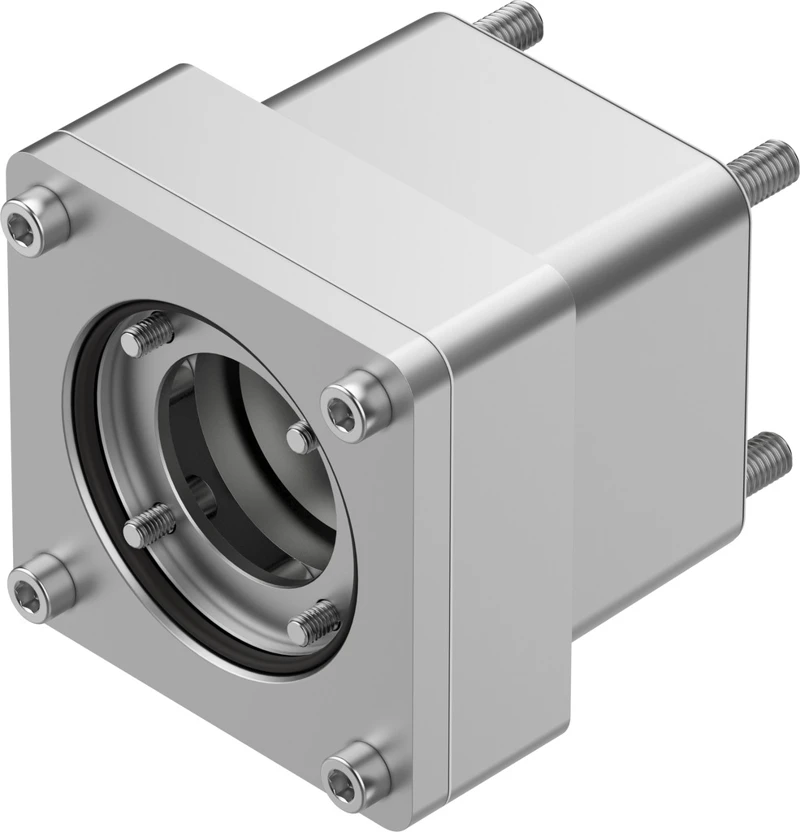

Axial kit, EAMM-A-D60-60G-S1
SKU: 2256698
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Axial kits EAMM-A
• Nominal length 83.4 mm
• Mounting position optional
• Max. rotational speed 6000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 34.8 kgmm²
• Transmittable torque 17 Nm
• Product weight 1250 g
• Interface code, actuator D60
• Interface code, motor in 60G
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Axial kits EAMM-A
• Nominal length 83.4 mm
• Mounting position optional
• Max. rotational speed 6000 rpm
• LABS (PWIS) conformity VDMA24364 zone III
• Storage temperature -25 °C ... 60 °C
• Relative air humidity 0 - 95%
• Degree of protection IP65
• Ambient temperature -10 °C ... 60 °C
• Mass moment of inertia 34.8 kgmm²
• Transmittable torque 17 Nm
• Product weight 1250 g
• Interface code, actuator D60
• Interface code, motor in 60G
• Note on materials RoHS-compliant
