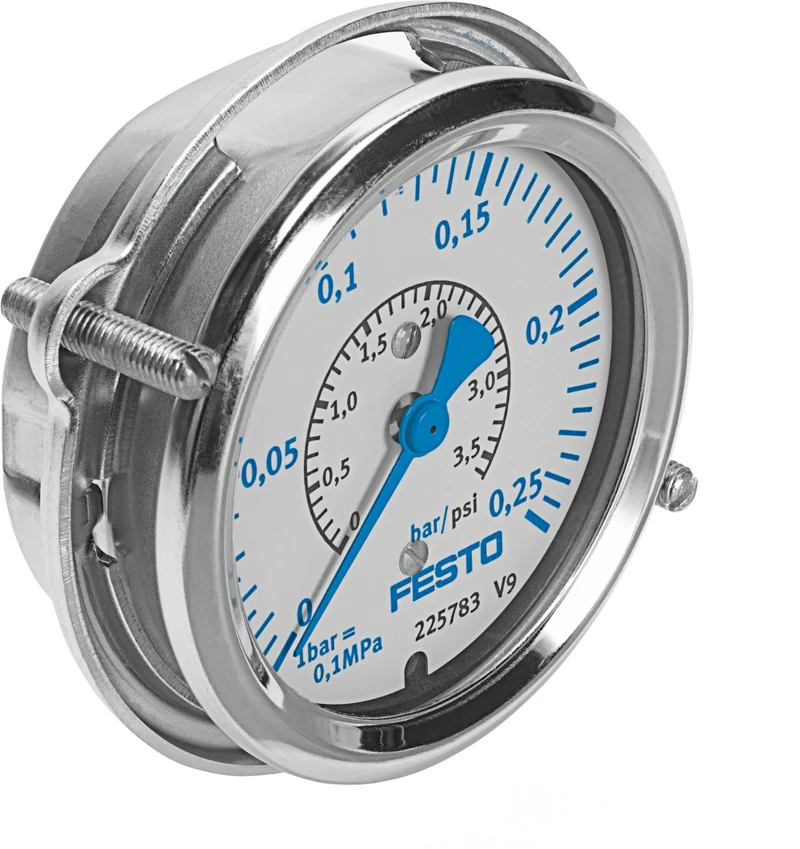

Flanged pressure gauge, FMA-63-0.25-C
SKU: 225783
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flanged pressure gauge FMA
• Type of mounting Front panel mounting
• Pneumatic connection G1/4
• Measurement accuracy class 1.6
• Indicating range 0 bar ... 0.25 bar
• Indicating range 0 psi ... 3.6 psi
• Symbol 00991463
• Conforms to standard EN 837-3
• Nominal size of pressure gauge 63
• Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Operating medium Liquid media, Gaseous media
Buy currently uses Select Automation shop pricing and checkout.
Flanged pressure gauge FMA
• Flanged pressure gauge to DIN EN 837-1 for front panel or in-line installation with display range up to 16 bar or 230 psi.
• Designs based on EN 837-1
• Pneumatic connection via G thread
• Display units bar, psi
