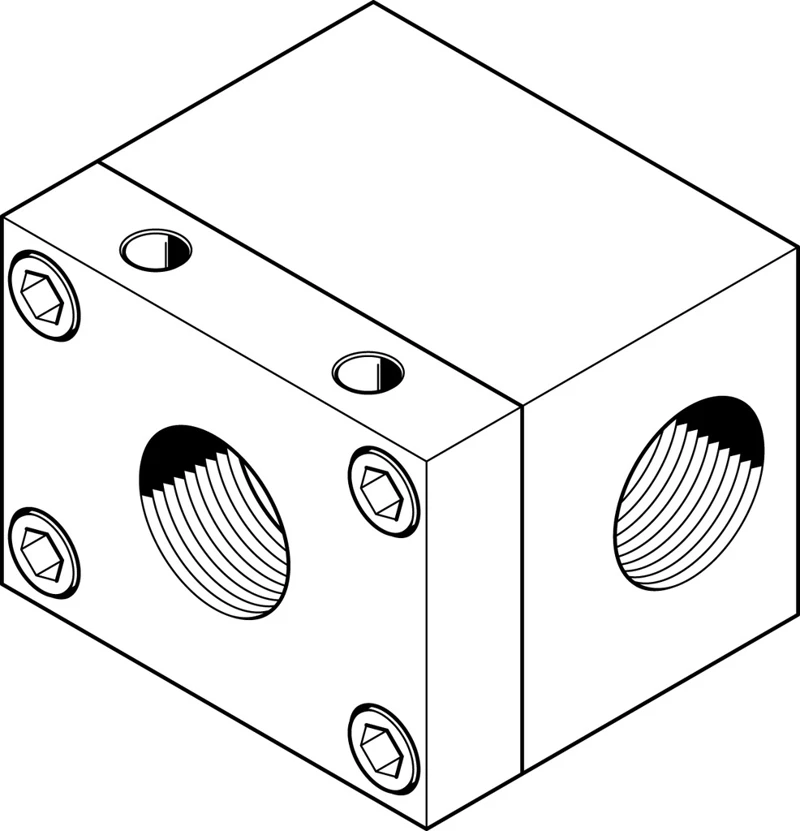

Quick exhaust valve, SE-3/4

Specifications • Quick exhaust valves SE • Valve function Quick exhaust • Pneumatic connection, port 1 G3/4 • Pneumatic connection, port 2 G3/4 • Type of mounting With through-hole • Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi) 7500 l/min • Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi) 2500 l/min • Operating pressure 0.5 bar ... 10 bar • Ambient temperature -20 °C ... 75 °C • Material housing Wrought aluminium alloy, Anodised • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
