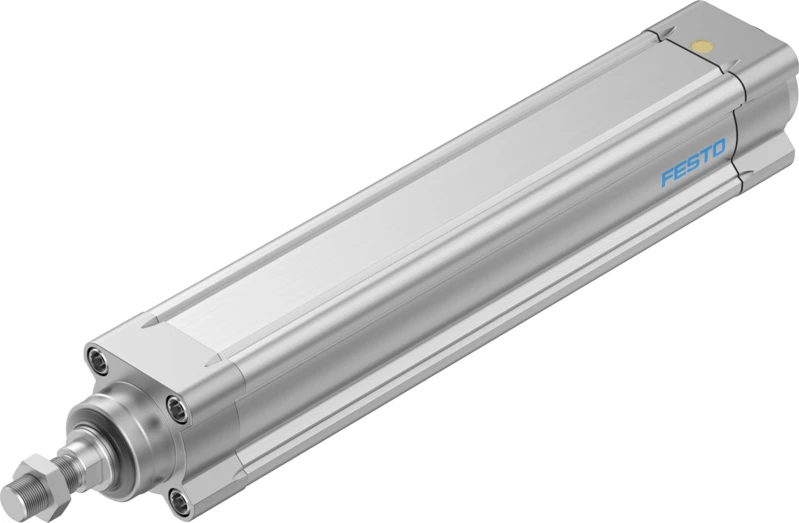

Electric drive, ESBF-LS-50-200-4P
SKU: 2295383
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric cylinders ESBF, with spindle drive
• Size 50
• Stroke 200 mm
• Piston rod thread M16x1.5
• Reversing backlash theoretical 100 µm
• Spindle diameter 20 mm
• Spindle pitch 4 mm/U
• Torsional backlash at piston rod +/- 0.15 deg
• Based on standard ISO 15552
• Mounting position optional
• Piston-rod end Male thread
• Type of motor Stepper motor, Servo motor
• Position detection Via proximity switch
• Design Electric cylinder with lead screw spindle
• Spindle type Lead screw
• Max. feed force Fx 1600 N
• Repetition accuracy ±0.05 mm
Buy currently uses Select Automation shop pricing and checkout.
Electric cylinder ESBF
• With a dynamic feed force of up to 17 kN, the extremely powerful electric cylinder ESBF comes into its own wherever heavy-duty and reliable positioning as well as precision and dynamic response are needed.
• Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50)
• Ball screw: with three spindle pitches for selecting the optimal force-speed ratio
• Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension
• Axial or parallel motor mounting
• 68 types in stock with short delivery times and modular products for custom variants
• Variants recommended for production systems for manufacturing lithium-ion batteries
