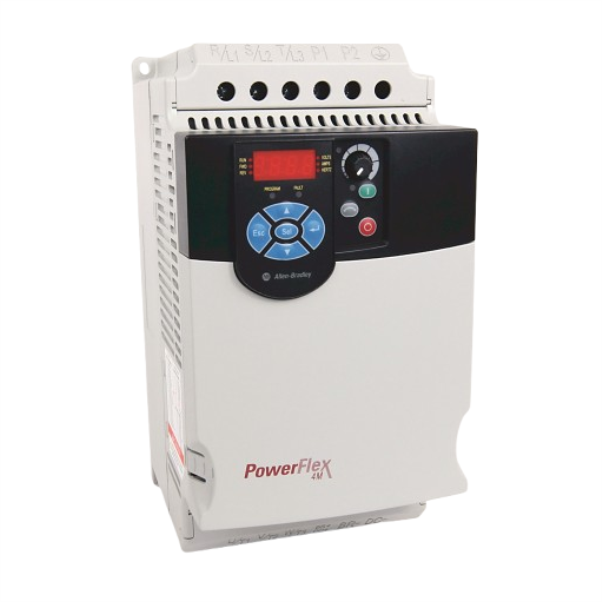

PowerFlex 4M- 11 kW (15 HP) AC Drive Frame C 480V AC 3PH 24A
SKU: 22F-D024N104
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AC 22F drives Power Flex® 4M.
With power ratings of 0.2–11 kW and 0.25–15 horsepower at 120 V, 240 V, and 480 V, they can be used in a variety of settings.
Slip correction and volts per hertz are used to satisfy application requirements.
DIN rail mounting with A and B frame drives allows for a flexible and time-saving installation.
Feed-through wiring makes it easy to adapt into applications that need motor control with variable speed.
Side-by-side mounting in ambient temperatures of up to 40°C (104°F) saves important panel space.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Base Drive:
Input Voltage: 480V AC, 3PH.
Output Current: 24 Amps.
Enclosure Style: IP20 (Open).
Frame Size: C.
Installed Options:
Human Interface Module Type: LED Display, Fixed Digital Keypad.
EMC Filtering Options: No CE Compliant Filter.
Internal Communication Module: RS485.
