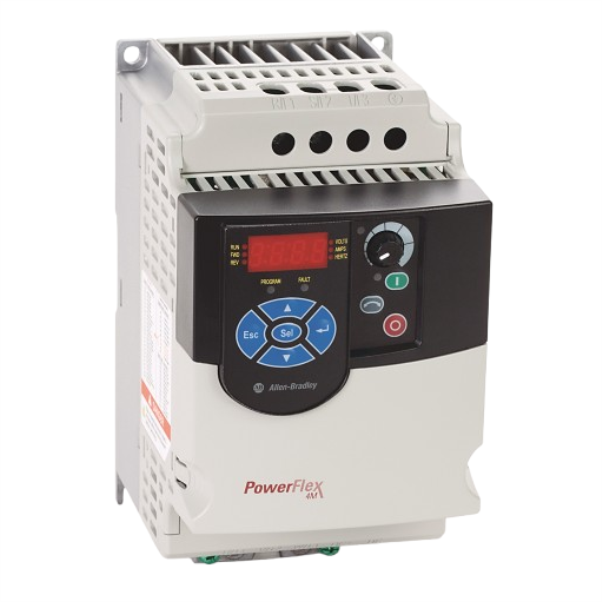

PowerFlex 4M-0.75 kW (1 HP) AC Drive Frame B 120V AC 1PH 4.5A
SKU: 22F-V4P5N103
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AC 22F drives Power Flex® 4M.
With power ratings of 0.2–11 kW and 0.25–15 horsepower at 120 V, 240 V, and 480 V, they can be used in a variety of settings.
Slip correction and volts per hertz are used to satisfy application requirements.
DIN rail mounting with A and B frame drives allows for a flexible and time-saving installation.
Feed-through wiring makes it easy to adapt into applications that need motor control with variable speed.
Side-by-side mounting in ambient temperatures of up to 40°C (104°F) saves important panel space.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Base Drive:
Input Voltage: 120V AC, 1PH.
Output Current: 4.5 Amps.
Enclosure Style: IP20 (Open).
Frame Size: B.
Installed Options:
Human Interface Module (type): LED display, fixed digital keypad.
EMC Filtering Options: No CE Compliant filter.
Internal Communication Module: No Brake Drive.
