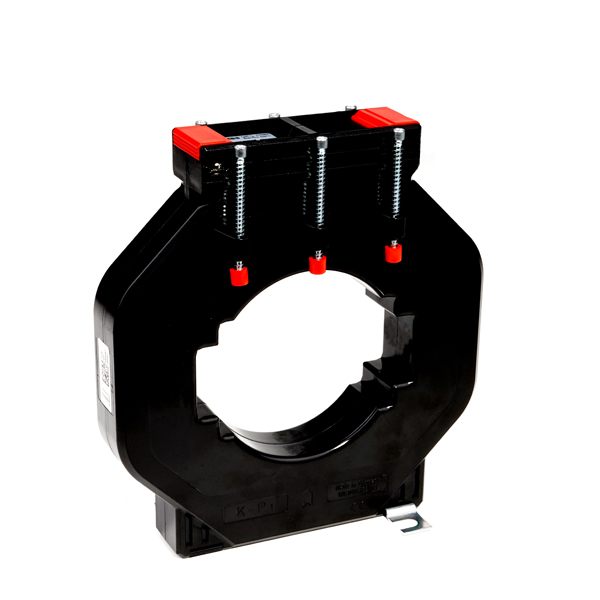

ASK 103.3 2000/5A 30VA CT cl 1
SKU: 23062
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers of current overall characteristics:
E is the isolation class.
Maximum working voltage: 0.72 kV or less.
50 Hz is the nominal frequency: alternative frequencies available upon request.
Ith = 60 x In represents the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (5A secondary - class 1),
ASK 103.3 current transformers,
MODEL ASK 103.3,
RATIO 2000/5A,
ROUND CONDUCTOR (⌀) 85 mm,
PRIMARY BAR CONDUCTOR 100 X 30 / 80 X 50 mm,
DESCRIPTION Standard current transformer,
CLASS 1,
VA 30,
DIMENSIONS (MM) (H) 188 x (W) 172 x (D) 52
