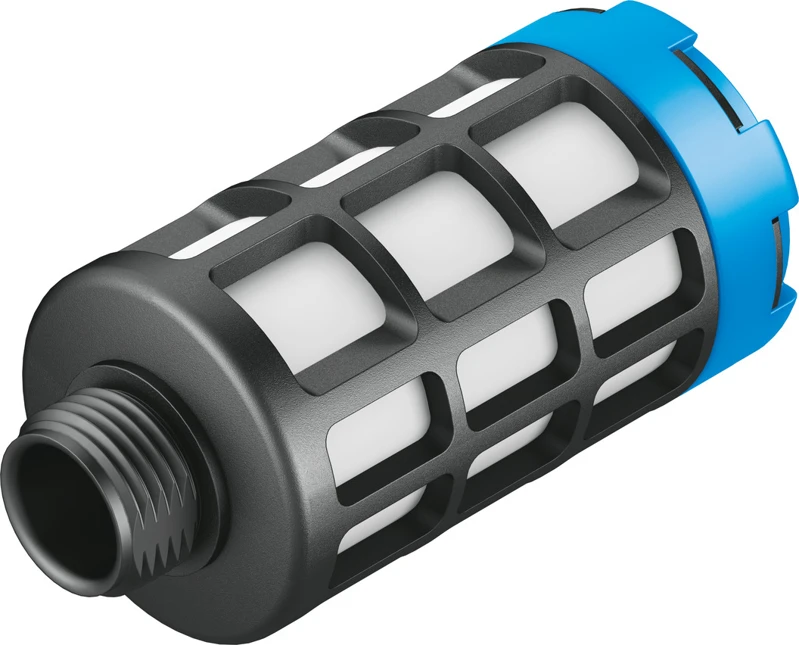

Silencer, U-1/2
SKU: 2310
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Silencers U
• Mounting position optional
• Symbol 00991473
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Flow rate to atmosphere 10300 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Sound pressure level 82 dB(A)
• Ambient temperature -10 °C ... 70 °C
• Product weight 58.2 g
• Pneumatic connection G1/2
• Material shock absorber insert PE
• Note on materials RoHS-compliant
Buy currently uses Select Automation shop pricing and checkout.
Silencers U
• For noise reduction at the exhaust ports of pneumatic components
• Polymer or die-cast metal design
• Connection thread G1/8, G1/4, G3/8, G1/2, G3/4, G1
• Noise level 74 ... 90 dB(A)
