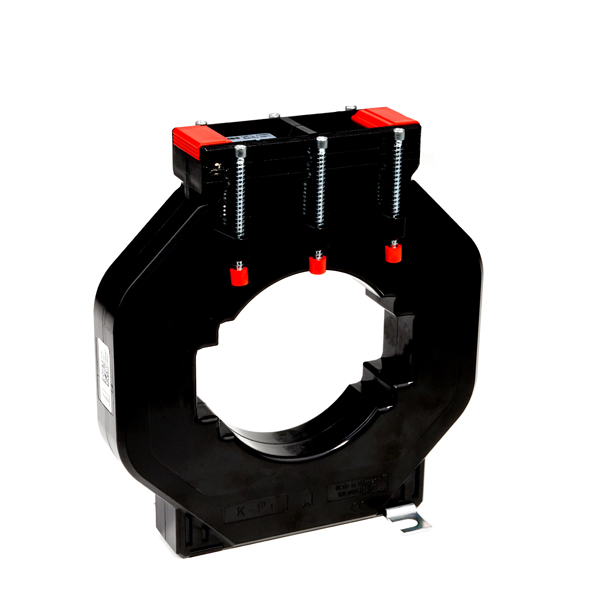

ASK 103.3 2000/1A CT cl 1
SKU: 23262
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers for current General details:
Class of isolation: E.
Operating voltage maximum: Um < 0.72 kV.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specification:
Standard current transformers (1A secondary - class 1),
ASK 103.3 plug-in current transformers,
MODEL ASK 103.3,
RATIO 2000/1A,
ROUND CONDUCTOR (⌀) 85 mm,
PRIMARY BAR CONDUCTOR 100 X 30 / 80 X 50 mm,
DESCRIPTION Standard current transformer,
CLASS 1,
VA 30,
DIMENSIONS (MM) (H) 188 x (W) 172 x (D) 35
