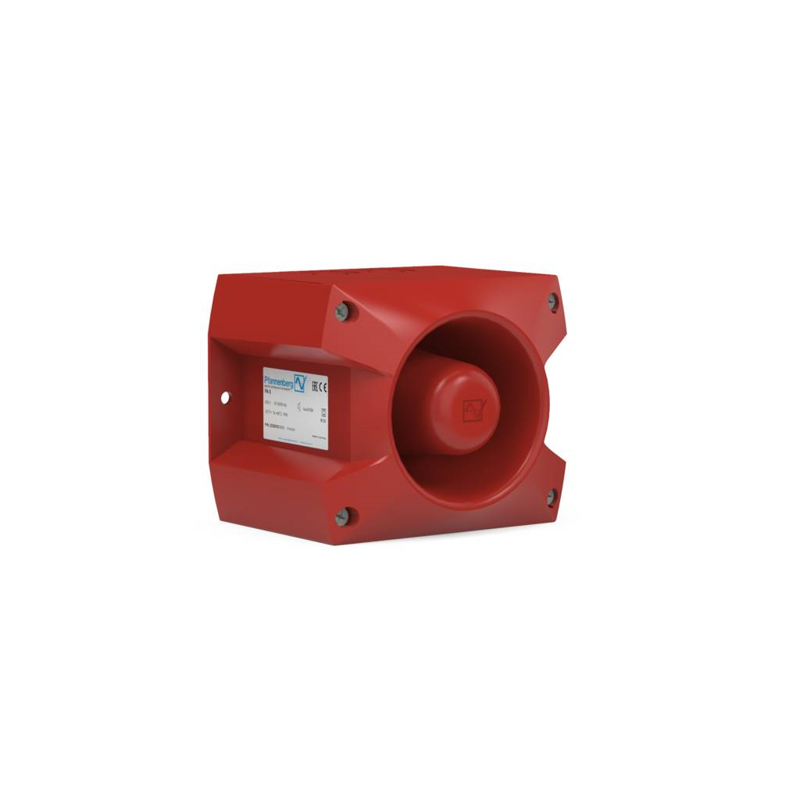

PA 5 230 AC
SKU: 23350100000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PATROL – the new generation of sounders Three-dimensional innovation:
safe; it is nearly impossible to install something incorrectly.
Simple; installation and assembly take much less time.
Economical: extraordinarily high efficiency and good penetration of acoustic impediments considerably minimize the number of sounders needed.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard.
Red housing.
230V AC.
Operating range: 195–253 V, AC 50 | 60.
Nominal current consumption1 (max): 16 Ma.
Sound pressure level: 107 dB(A).
Sound pressure level at DIN-tone: 105 dB(A).
Sound level reduction: max. –12 dB via potentiometer.
Alarm tones: 80 of the 4 tones are externally selectable.
Operating temperature: –40 °C ... +55 °C.
Storage temperature: –40 °C ... +70 °C.
Relative humidity: 90%.
Protection system according to EN 6052: IP 66 (EN 60529), NEMA Type 4 & 4x.
Material: PC / ABS blend like RAL 3000 (flame red) | RAL 7035 (light grey) | RAL 9003 (signal white).
Cable entry: 5x M20 knockouts on side, 1 knock-out on back.
Integrated seal with cable entry: 7-13 mm (Feed-through grommet).
Connecting terminals: 0.14 - 2.5mm² fine stranded / AWG24 - AWG 14.
