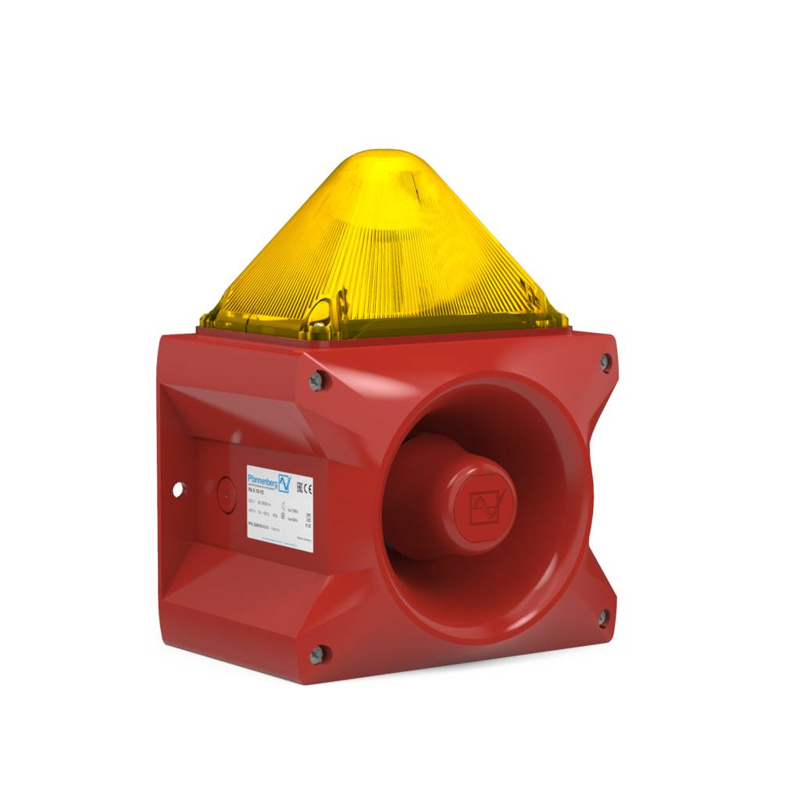

PA X 10-10 230 AC GE / PA X 10-10 230 AC YE
SKU: 23361103000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PATROL – the new generation of sounder/flashing light combinations. Three-dimensional innovation:
Safe: wrong installation is nearly impossible.
Easy: assembly and installation times are greatly reduced.
Economical: exceptionally high efficiency and good penetration of acoustic impediments considerably minimize the number of sounders needed.
Sounder and light ex works pre-wired.
There are different light intensities available to enable the optimal audio-visual coverage match.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Housing: red.
Lens colour: yellow.
230 V AC.
Sound pressure level: 117 dB(A).
Sound pressure level at DIN-tone: 115 dB(A).
Sound level reduction: max. –12 dB via potentiometer.
Alarm tones: 80 / 4 tones are externally selectable.
Flash energy: 10 Joule.
Flash rate: 1 Hz = 60 flashes/min.
Light intensity (DIN 5037) 2: 149 cd.
Max. viewing distance: 283 m.
Operating temperature: –40 °C ... +55 °C.
Relative humidity: 90 %.
Protection system (EN 60529): IP 66.
Service life of the light source: light emission still 70 % after 8,000,000 flashes.
Material, sounder: PC / ABS blend similar to RAL 3000 (flame red) / RAL 7035 (light grey).
Material, lens flashing light: polycarbonate (PC).
Cable entry: 4x M20 knockouts prepared (on side), 1 knock-out on back.
Integrated seal with cable entry: 6–13 mm (feed-through grommet).
Connecting terminals: 2.5 mm2 fine wire with cable end sleeve, AWG 16.
