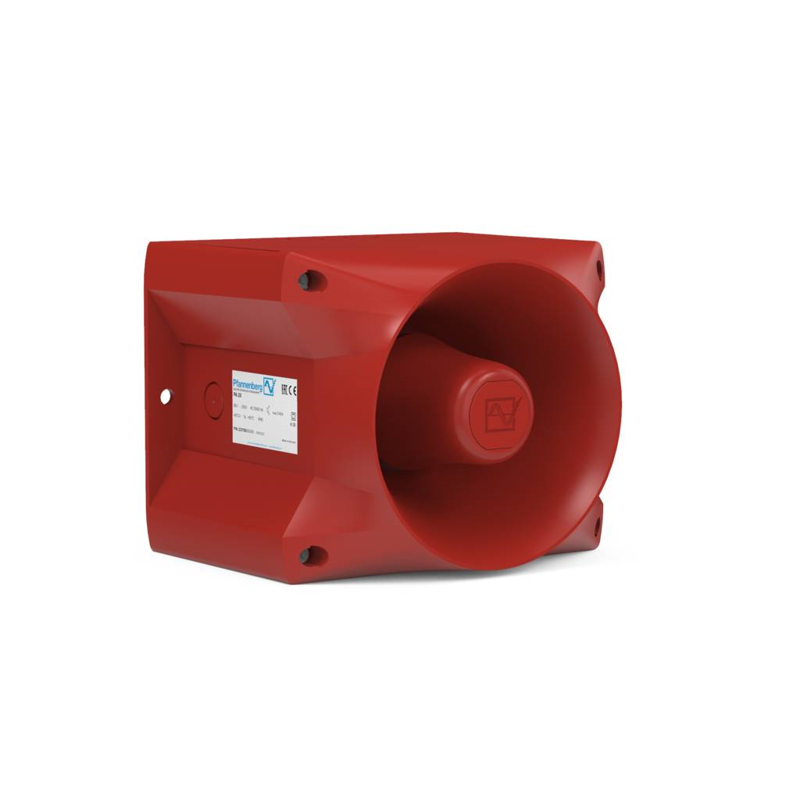

PA 20 HV AC
SKU: 23370640000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PATROL – the new generation of sounders. Three-dimensional innovation:
Safe: The wrong installation is nearly impossible.
Easy: Assembly and installation take substantially less time.
Economical: exceptionally high efficiency and good penetration of acoustical impediments considerably minimize the number of sounders needed.
Excellent coverage area for 3D coverage.
Maximize your efficacy using Pfannenberg signalling devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard version.
Housing: red.
Operating range: 95–265 V AC, AC 50 | 60.
Nominal current consumption1 (max): 330 mA.
Sound pressure level: 120 dB(A) | 122 dB(A).
Sound pressure level at DIN-tone: 118 dB(A) | 120 dB(A).
Sound level reduction: max. –9 dB via potentiometer.
Alarm tones: 80 / 4 tones are externally selectable.
Operating temperature: –40 °C ... +55 °C.
Storage temperature: –40 °C ... +70 °C.
Relative humidity: 90 %.
Protection system according to EN 6052: IP 66 (EN 60529), NEMA Type 4 and 4x.
Duty cycle: 100 %.
Material: PC / ABS blend similar to RAL 3000 (flame red) | RAL 7035 (light grey).
Cable entry: 6x M20 knockouts on side, 1 knock-out on back.
Integrated seal with cable entry: 7–13 mm (feed-through grommet).
Connecting terminals: 0.14 - 2.5mm² fine stranded / AWG24 - AWG 14.
