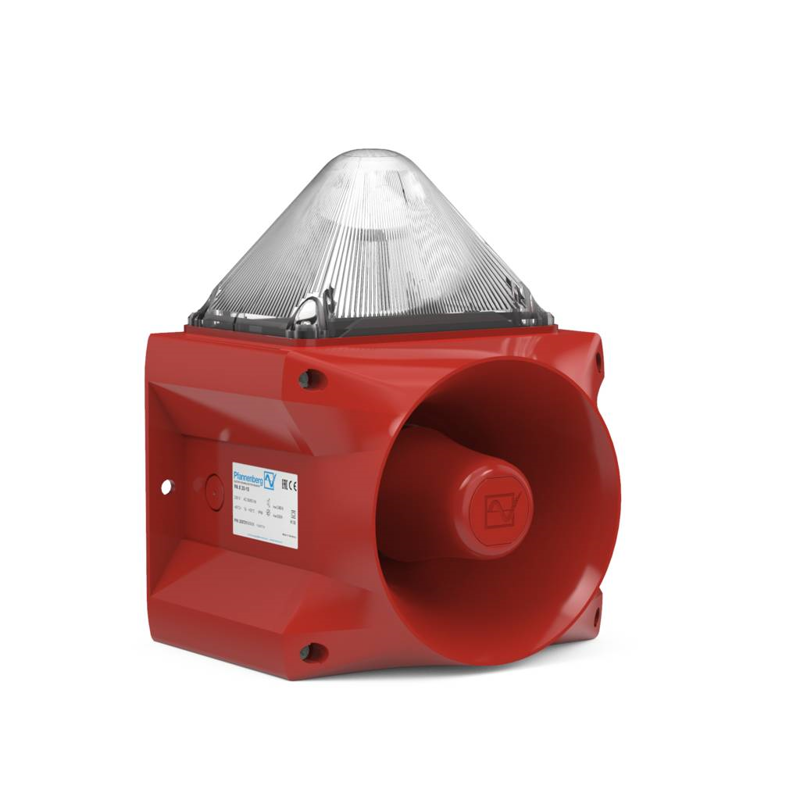

PA X 20-15 230 AC GE / PA X 20-15 230 AC YE
SKU: 23372103000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PATROL – the new generation of sounder/flashing light combinations. Three-dimensional innovation:
It is practically impossible to install incorrectly.
Assembly and installation are simple and take much less time.
Economical: exceptionally high efficiency and good penetration of acoustical impediments considerably reduce the number of sounders required.
Sounder and light ex works pre-wired.
There are different light intensities available to enable optimal audiovisual coverage.
Excellent coverage area for 3D coverage.
Pfannenberg signalling devices ensure maximum effectiveness.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Housing: red.
Lens colour: yellow.
230 V AC.
Sound pressure level: 122 dB(A).
Sound pressure level at DIN-tone: 120 dB(A).
Sound level reduction: max. –12 dB via potentiometer.
Alarm tones: 80 / 4 tones are externally selectable.
Flash energy: 15 Joule.
Flash rate: 1 Hz = 60 flashes/min.
Light intensity (DIN 5037) 2: 265 cd.
Max. viewing distance: 377 m.
Operating temperature: –40 °C ... +55 °C.
Relative humidity: 90 %.
Protection system (EN 60529): IP 66.
Material, sounder: PC / ABS blend similar to RAL 3000 (flame red) / RAL 7035 (light grey).
Material, lens flashing light: polycarbonate (PC).
Cable entry: 4x M20 knockouts prepared (on side), 1 knock-out on back.
Integrated seal with cable entry: 6–13 mm (feed-through grommet).
Connecting terminals: 2.5 mm2 fine wire with cable end sleeve, AWG 16.
