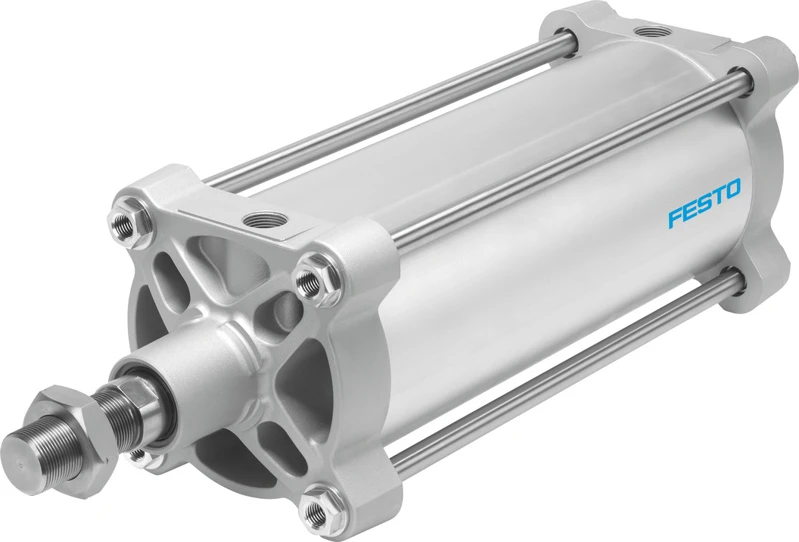

ISO cylinder, DSBG-...-200- -
SKU: 2344936
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, ISO 15552
• Stroke 1 mm ... 2700 mm
• Piston diameter 200 mm
• Piston rod thread M36x2, M36, M30x2, M27x2, M27, M24, M20x1.5, M20
• Based on standard ISO 15552
• Cushioning Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Variants: Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Extended piston rod, Metal scraper, High corrosion protection, Through piston rod, Heat-resistant seals max. 120°C, Clamped swivel mounting position, Screwed-on swivel mounting position, Spacer bolt on end cap side, Spacer bolt on both sides, Spacer bolt on bearing cap side, Variable spacer bolt length, Temperature range 0 to 150°C, Shortened male piston rod thread, Piston rod at one end, For proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, ISO 15552
• Standards-based cylinders to ISO 15552 (corresponds to the withdraw standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• Optionally with protection against rotation
• EX4: for use in potentially explosive areas
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends
