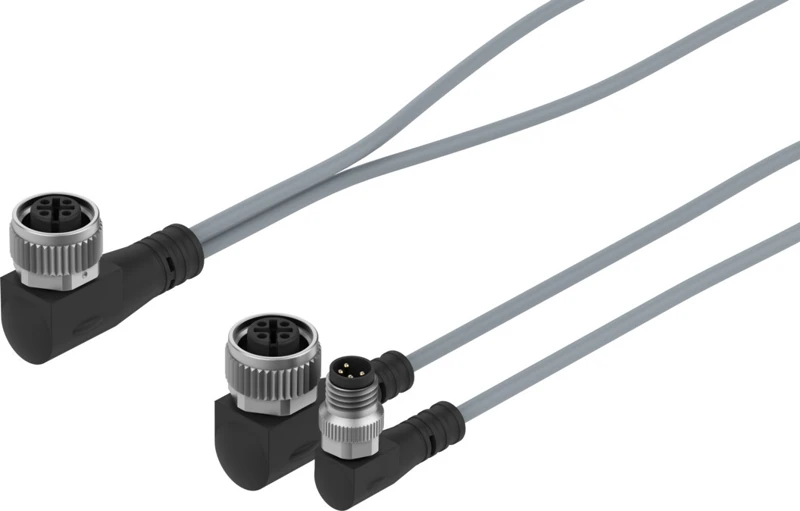

Connecting cable, NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1

Specifications • Sub-bases VABP • Accessories, Connecting cable and plug socket with cable • Based on standard EN 61076-2-101, EN 61076-2-104, EN 61984 • Mounting position optional • Product weight 28 g • Electrical connection 1 2x angled socket, M12, 3-pin • Electrical connection 2 Angled plug, M8, 4-pin • Operational voltage range DC 0 V ... 30 V • Current rating at 40° C 2 A • Cable length 0.2 m • Cable diameter 2.9 mm • Cable structure 2 x 0.14 mm² • Degree of protection IP65 • Ambient temperature -25 °C ... 80 °C
