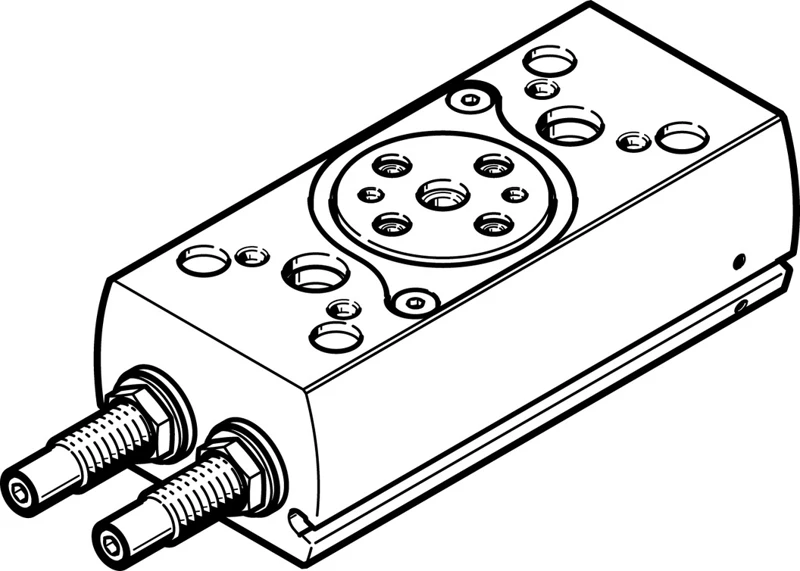

Semi-rotary drive, DRRD-12-180-FH-Y9A
SKU: 2399248
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Size 12
• Swivel angle 180 deg
• Permissible mass moment of inertia 0.03 kgm²
• Theoretical torque at 0.6 MPa (6 bar, 87 psi) 0.8 Nm
• Position detection Via proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
