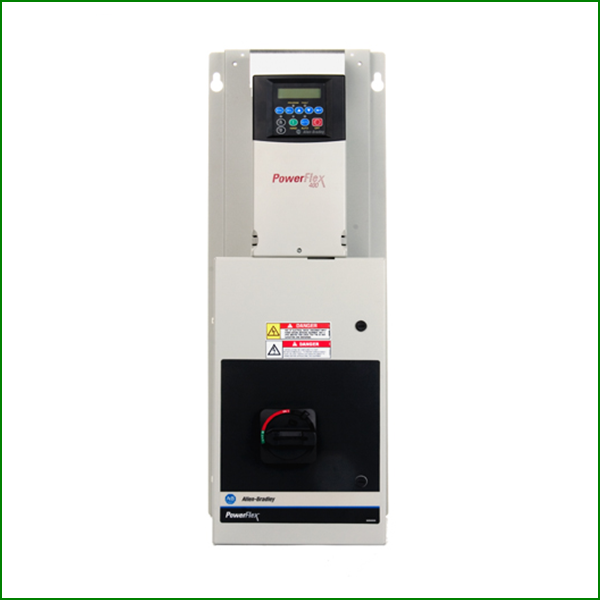

Fan/Pump Packaged Drive 23C
SKU: 23C-D012A10ENNAANN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Allen-Bradley 23C-D012A10ENNAANN is a PowerFlex 400 packaged adjustable-frequency AC drive for fan and pump applications. It is a 480 V class, 3-phase unit rated at 11 A / 5.5 kW / 7.5 HP in Frame C, with NEMA/UL Type 1 enclosure, fixed keypad, EtherNet/IP communications, main input disconnect, single-motor control, no CE filter, no space heater, and no input line reactor.
Buy currently uses Select Automation shop pricing and checkout.
SpecificationsBrandAllen-Bradley / Rockwell AutomationSeriesPowerFlex 400Product typeFan/Pump Packaged Drive 23CCatalog number23C-D012A10ENNAANNInput voltage480 V AC, 3-phaseOutput current11 AMotor rating5.5 kW / 7.5 HPFrame sizeCEnclosureNEMA/UL Type 1InterfaceFixed keypadCommunicationsEtherNet/IP adapterPackageMain input disconnectControlSingle motorEmission classNot filtered / without CE-compliant filterSpace heaterNoInput line reactorNoLifecycle statusActive, per Rockwell listingRelated documents22C-TD001 Technical Data; 22C-UM001 User Manual; 22C-IN002 Installation Instructions
