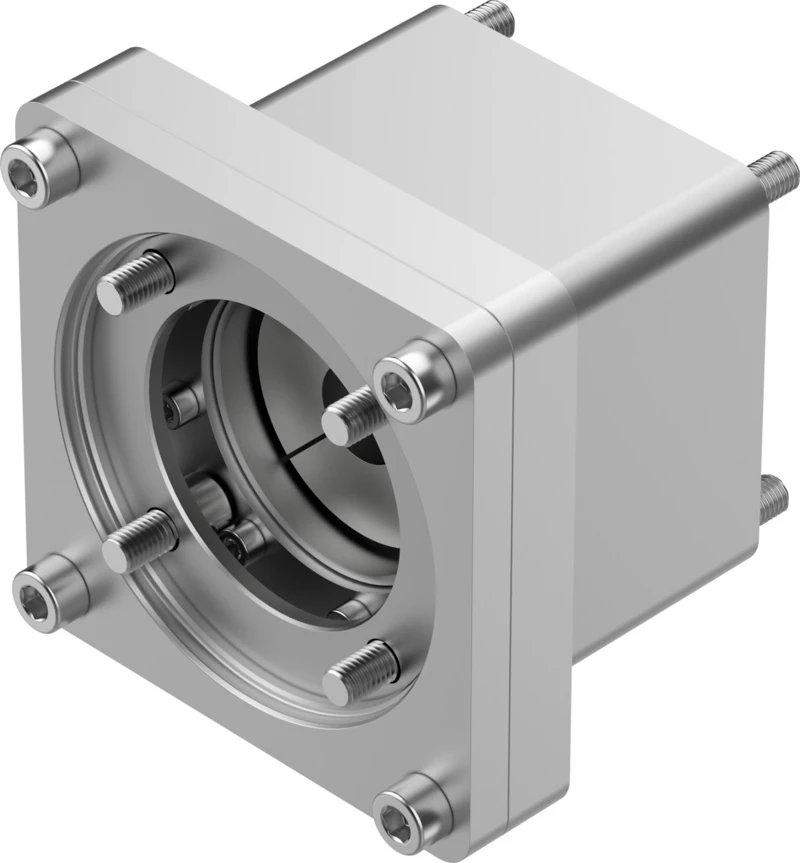

Axial kit, EAMM-A-D100-120G

Specifications • Axial kits EAMM-A • Permissible axis/motor combinations with electric cylinder ESBF • Nominal length 113.5 mm • Mounting position optional • Max. rotational speed 4500 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 280 kgmm² • Transmittable torque 143 Nm • Product weight 3520 g • Interface code, actuator D100 • Interface code, motor in 120G • Note on materials RoHS-compliant
