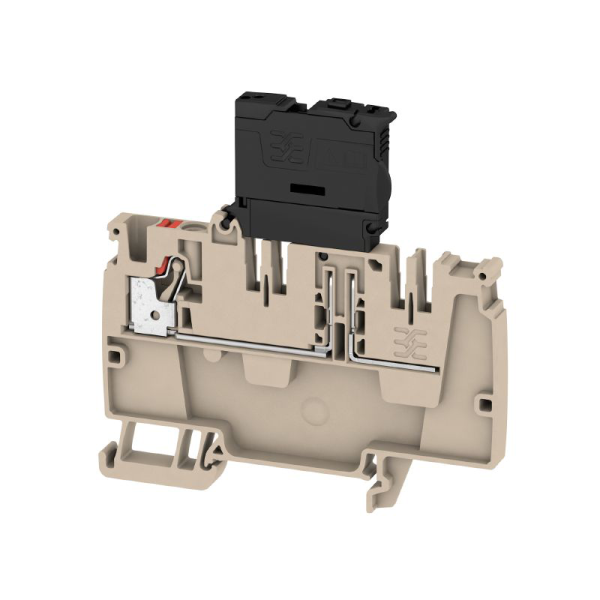

AAP21 4 FS 100-250V
SKU: 2460180000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
AAP21 4 FS 100-250V:
The innovative modular concept can be customized to any type of machine.
The prospective distribution terminal blocks AAP are successful due to their consistent design, which has two construction options: alternating or clustered.
The control voltage distribution uses a grouped structure with potentials located on separate terminal blocks, forming whole potential blocks.
Dimensions and weights:
Depth: 82 mm.
Depth (inches): 3.228 inch.
Depth including DIN rail: 82.5 mm.
Height: 82 mm.
Height (inches): 3.228 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 18.6 g.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60 °C.
Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
REACH SVHC: /.
Buy currently uses Select Automation shop pricing and checkout.
Material data:
Material: Wemid.
Colour: dark beige.
Colour of operational elements: red.
UL 94 flammability rating: V-0.
Rating data IECEx/ATEX:
Certificate No. (ATEX): TUEV17ATEX8064U.
Certificate No. (IECEX): IECEXTUR17.0030U.
Current (ATEX): 6.3 A.
Wire cross section max. (ATEX): 4 mm².
Current (IECEX): 6.3 A.
Wire cross section max. (IECEX): 4 mm².
Marking EN 60079-7: Ex ec II C Gc.
Ex 2014/34/EU label: II 2 G D.
System specifications:
Version: With LED.
End cover plate required: Yes.
Number of potentials: 1.
Number of levels: 1.
Levels cross-connected internally: No.
Rail: TS 35.
Additional technical data:
Explosion-tested version: Yes.
Installation advice: Rail.
Open sides: right.
Snap-on: No.
Type of fixing: Snap-on.
Type of mounting: TS 35.
With snap-in pegs: No.
Conductors for clamping (additional connection):
Connection type, additional connection: PUSH IN.
Conductors for clamping (rated connection):
Blade size: 0.6 x 3.5 mm.
Clamping range, max.: 4 mm².
Clamping range, min.: 0.14 mm².
Connection cross-section, stranded, max.: 4 mm².
Connection cross-section, stranded, min.: 0.5 mm².
Connection direction: top.
Gauge to IEC 60947-1: A4.
Number of connections: 1.
Stripping length: 12 mm.
Tube length for twin wire-end ferrule:
Tube length:
min.: 8 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length for wire-end ferrule with plastic collar DIN 46228/4:
Tube length:
min.: 8 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length:
min.: 7 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 1.5 mm².
max.: 2.5 mm².
Tube length:
min.: 9 mm.
max.: 15 mm.
Cross-section for conductor connection:
nominal: 4 mm².
Tube length for wire-end ferrule without plastic collar DIN 46228/1:
Tube length:
min.: 8 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length:
min.: 7 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 1.5 mm².
max.: 2.5 mm².
Tube length:
min.: 9 mm.
max.: 15 mm.
Cross-section for conductor connection:
nominal: 4 mm².
Twin wire-end ferrules, max.: 1.5 mm².
Twin wire-end ferrules, min.: 0.5 mm².
Type of connection: PUSH IN.
Wire connection cross section AWG, max.: AWG 12.
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section, finely stranded, max.: 4 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, solid core, max.: 4 mm².
Wire connection cross-section, solid core, min.: 0.5 mm².
CSA rating data:
Certificate No. (CSA): 200039-70089609.
Current size B (CSA): 10 A.
Current size C (CSA): 10 A.
Current size D (CSA): 10 A.
Voltage size B (CSA): 300 V.
Voltage size C (CSA): 150 V.
Voltage size D (CSA): 300 V.
Wire cross section max. (CSA): 10 AWG.
Wire cross section min. (CSA): 26 AWG.
General:
Installation advice: Rail.
Rail: TS 35.
Standards: In accordance with IEC 60947-7-3.
Wire connection cross section AWG, max.: AWG 12.
Wire connection cross section AWG, min.: AWG 26.
Rating data:
Rated cross-section: 4 mm².
Rated voltage: 250 V.
Rated voltage to adjoining terminal: 500 V.
Rated DC voltage: 250 V.
Rated current: 6.3 A.
Current at maximum wires: 6.3 A.
Standards: In accordance with IEC 60947-7-3.
Volume resistance according to IEC 60947-7-x: 1 mΩ.
Rated impulse withstand voltage: 4 kV.
Power loss in accordance with IEC 60947-7-x: 1.02 W.
Pollution severity: 2.
Surge voltage category: III.
UL rating data:
Certificate No. (cURus): E60693.
Conductor size Factory wiring max. (cURus): 10 AWG.
Conductor size Factory wiring min. (cURus): 26 AWG.
Conductor size Field wiring max. (cURus): 10 AWG.
Conductor size Field wiring min. (cURus): 26 AWG.
Current size B (cURus): 10 A.
Current size C (cURus): 10 A.
Current size D (cURus): 10 A.
Voltage size B (cURus): 300 V.
Voltage size C (cURus): 150 V.
Voltage size D (cURus): 300 V.
Important note:
Product information: The voltage depends on the selected fuse element or the selected indicator light.
