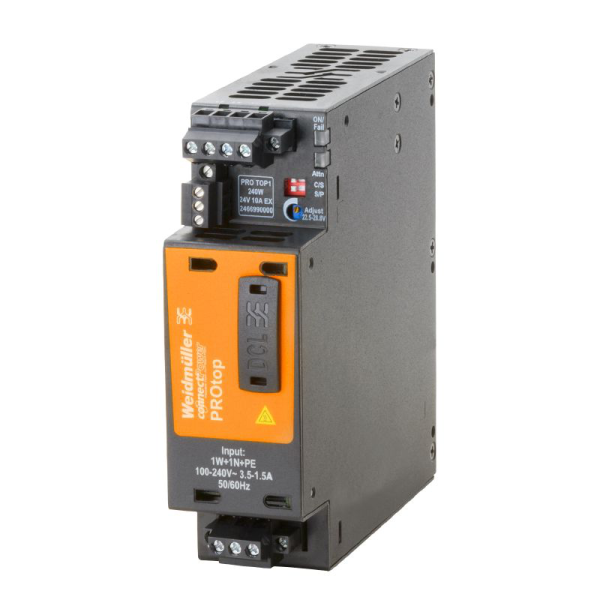

PRO TOP1 240W 24V 10A EX
SKU: 2466990000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
PRO TOP1 240W 24V 10A EX:
Production procedures must always be optimized for efficiency.
In addition to performance, energy efficiency and sustainability are becoming increasingly crucial in cutting-edge industries.
PROtop power supplies combine great performance statistics with exemplary sustainability, increasing overall manufacturing facility productivity.
PROtop provides a number of benefits that give you a distinct competitive advantage.
High efficiency lead to lower energy costs and increased plant availability through longer service life and MTBF values.
Furthermore, there is a high functional density due to the exceptionally space-efficient designs.
PROtop can save significantly more than conventional power supply devices.
Its higher efficiency saves an average of 50 kWh per day in a medium-sized production facility with around 100 PROtop power supply operating on three shifts.
This adds up to over 15,000 kWh each year while also lowering the facility's carbon footprint.
The service life, which is twice as long as that of typical power supply, also minimizes repurchase and exchange expenses over time.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 125 mm.
Depth (inches): 4.921 inch.
Height: 130 mm.
Height (inches): 5.118 inch.
Width: 39 mm.
Width (inches): 1.535 inch.
Net weight: 956 g.
Temperatures:
Storage temperature: -40 °C - 85 °C.
Operating temperature: -40 °C - 70 °C.
Humidity at operating temperature: 5 - 100 % no condensation.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.
Input:
AC input voltage range: 85 - 277 V AC.
Connection system: Clamping yoke.
Current consumption in relation to the input voltage:
Voltage type: AC.
Input voltage: 100 V.
Input current: 4 A.
Voltage type: DC.
Input voltage: 120 V.
Input current: 4 A.
DC input voltage range: 80 - 410 V DC.
Frequency range AC: 45 - 65 Hz.
Input fuse (internal): Yes.
Inrush current: max. 5 A.
Nominal power consumption: 260.9 VA.
Rated input voltage: 110 - 240 V AC / 120 - 340 V DC.
Recommended back-up fuse: 5 A, DI / 6 A, Char. B / 6 A, Char C.
Surge protection: Varistor.
Output:
Connection system: Clamping yoke connection.
DCL - peak load reserve:
Boost duration: 5 s.
Multiple of the rated current: 150 %.
Boost duration: 15 ms.
Multiple of the rated current: 600 %.
Mains failure bridge-over time: > 20 ms @ 115V AC/ 230 VAC.
Nominal output current for Unom: 10 A @ 60 °C.
Output power: 240 W.
Output voltage, max.: 28.8 V.
Output voltage, min.: 22.5 V.
Output voltage, note: adjustable with potentiometer or communication module.
Parallel connection option: yes, max 10.
Protection against inverse voltage: Yes.
Ramp-up time: ≤ 100 ms.
Rated output voltage: 24 V DC ± 1 %.
Residual ripple, breaking spikes: <50 mVss @ UNenn, Full Load.
General data:
AC failure bridging time @ Inom: > 20 ms @ 230 V AC / > 20 ms @ 115 V AC.
Conformal coating: Yes.
Degree of efficiency: 92%.
Derating: > 60°C (2.5% / 1°C).
Earth leakage current, max.: 3.5 mA.
Housing version: Metal, corrosion resistant.
MTBF:
According to Standard: SN 29500.
Operating time (hours), min.: 1,600,000 h.
Ambient temperature: 25 °C.
Input voltage: 230 V.
Output power: 240 W.
Duty cycle: 100 %.
According to Standard: SN 29500.
Operating time (hours), min.: 763,000 h.
Ambient temperature: 40 °C.
Input voltage: 230 V.
Output power: 240 W.
Duty cycle: 100 %.
Power factor (approx.): > 0.9.
Power loss, idling: 5 W.
Power loss, nominal load: 20.8 W.
Protection degree: IP20.
Short-circuit protection: Yes, internal.
Start-up: ≥ -40 °C.
Surge voltage category: III, II.
EMC / shock / vibration:
Interference immunity test acc. to: EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011.
Noise emission in accordance with EN55032: Class B.
Shock resistance IEC 60068-2-27: 30 g in all directions.
Vibration resistance IEC 60068-2-6: 2.3 g (on DIN rail), 4 g (with direct mounting).
Insulation coordination:
Insulation voltage input / earth: 3.2 kV.
Insulation voltage output / earth: 0.5 kV.
Insulation voltage, input/output: 3.5 kV.
Pollution severity: 2.
Protection class: I, with PE connection.
Surge voltage category: III, II.
Electrical safety (applied standards):
Electrical machine equipment: Acc. to EN60204.
For use with electronic equipment: Acc. to EN50178 / VDE0160.
Protection against dangerous shock currents: Acc. to VDE0106-101.
Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
Safety transformers for switch-mode power supplies: According to EN 61558-2-16.
Connection data (input):
Conductor cross-section, AWG/kcmil, max.: 12 AWG.
Conductor cross-section, AWG/kcmil, min.: 30 AWG.
Conductor cross-section, flexible, min.: 0.2 mm².
Conductor cross-section, rigid, max.: 4 mm².
Conductor cross-section, rigid, min.: 0.2 mm².
Connection system: Clamping yoke.
Number of terminals: 3 for L/N/PE.
Screwdriver blade: 0.6 x 3.5.
Wire connection cross section, flexible (input), max.: 4 mm².
Connection data (output):
Conductor cross-section, AWG/kcmil, max.: 12 AWG.
Conductor cross-section, AWG/kcmil, min.: 30 AWG.
Conductor cross-section, flexible, max.: 4 mm².
Conductor cross-section, flexible, min.: 0.2 mm².
Conductor cross-section, rigid, max.: 4 mm².
Conductor cross-section, rigid, min.: 0.2 mm².
Connection system: Clamping yoke connection.
Number of terminals: 5 (+ + / - - -).
Screwdriver blade: 0.6 x 3.5.
Connection data (signal):
Wire connection cross-section, flexible (signal), max.: 1.5 mm².
Wire connection cross-section, flexible (signal), min.: 0.2 mm².
Wire connection method: Screw connection.
Wire cross-section, AWG/kcmil, max.: 16.
Wire cross-section, AWG/kcmil, min.: 28 mm².
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, min.: 0.2 mm².
Signalling:
Floating contact: Yes.
LED green/red:
Green: Operation (failure-free).
Flashing green: advance warning I>90%.
Green/red flashing: output switched off (switch-off mode).
Flashing red: overload/error.
Status relay (max. load): Output voltage OK (30 V DC / 1 A).
Approbations:
Certificate no. (cULus): E258476.
Certificate no. (cULusEX): E470829.
Institute (cULus): CULUS.
Institute (cULusEX): CULUSEX.
