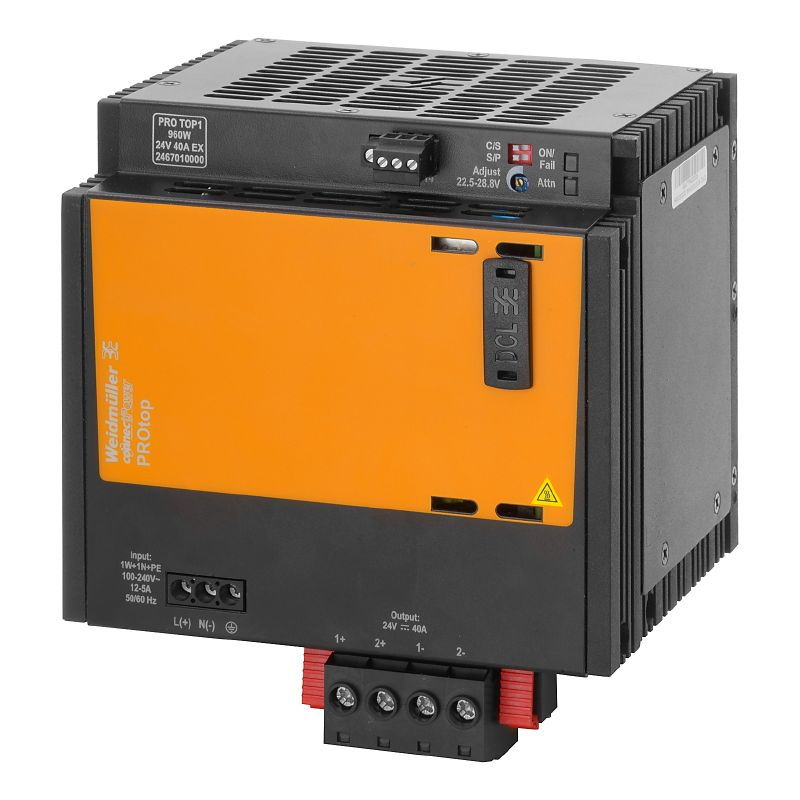

PRO TOP1 960W 24V 40A EX
SKU: 2467010000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Production procedures must always be made more effective.
In addition to performance, energy efficiency and usability are becoming increasingly vital in the cutting-edge business.
The productivity of the entire production plant is positively impacted by PROtop power supplies' exceptional performance statistics and outstanding sustainability.
You can gain a significant competitive advantage from PROtop's many benefits.
These include the long-term savings in energy expenses due to high efficiency and the rise in plant availability because of long service lives and high MTBF values.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weight:
Depth: 125 mm.
Height: 130 mm.
Width: 139 mm.
Net weight: 3,382 g.
Temperatures:
Storage temperature: -40 °C...85 °C.
Operating temperature: -40 °C...70 °C.
Humidity at operating temperature: 5...100 % no condensation.
AC failure bridging time @ Inom: > 20 ms @ 230 V AC / > 20 ms @ 115 V AC.
Degree of efficiency: 94%.
Earth leakage current, max.: 3.5 mA.
Power factor (approx.): > 0.9.
Power loss, nominal load: 61.3 W.
Short-circuit protection: Yes, internal.
Conformal coating: Yes.
Derating: > 60°C (2.5% / 1°C).
Housing version: Metal, corrosion resistant.
Power loss, idling: 5 W.
Protection degree: IP20.
Surge voltage category: III, II.
