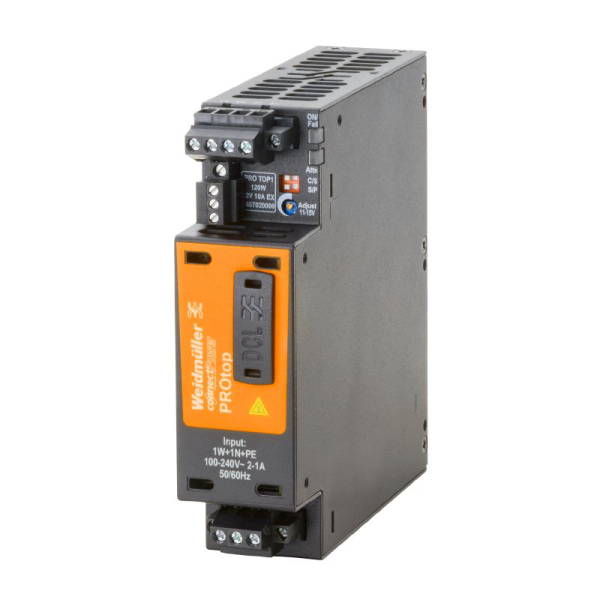

PRO TOP1 120W 12V 10A EX
SKU: 2467020000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
PRO TOP1 120W 12V/10A EX:
We must continuously improve production processes to increase efficiency.
In addition to performance, energy efficiency and sustainability are becoming increasingly crucial in cutting-edge industries.
PROtop power supplies combine great performance statistics with exemplary sustainability, which improves overall manufacturing facility productivity.
PROtop provides several benefits that give you a distinct competitive advantage.
High efficiency reduce energy costs and boost plant availability through longer service life and MTBF values.
Furthermore, the highly space-efficient designs result in a high functional density.
PROtop can save significantly more than traditional power supply devices.
The increased efficiency saves an average of 50 kWh per day in a medium-sized production facility with 100 PROtop power supply operating in three shifts.
This adds up to over 15,000 kWh each year while also lowering the facility's carbon footprint.
The service life, which is twice as long as that of typical power supply, also minimizes repurchase and exchange expenses over time.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 125 mm.
Depth (inches): 4.921 inch.
Height: 130 mm.
Height (inches): 5.118 inch.
Width: 35 mm.
Width (inches): 1.378 inch.
Net weight: 850 g.
Temperatures:
Storage temperature: -40 °C...85 °C.
Operating temperature: -40 °C...70 °C.
Humidity at operating temperature: 5...100 % no condensation.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d.
RoHS Compliance Status: Compliant with exemption.
RoHS Exemption (if applicable/known): 6c, 7a, 7cI.
Input:
AC input voltage range: 85…277 V AC.
Connection system: Clamping yoke.
Current consumption in relation to the input voltage:
Voltage type: AC.
Input voltage: 100 V.
Input current: 2 A.
Voltage type: DC.
Input voltage: 120 V.
Input current: 2 A.
DC input voltage range: 80... 410 V DC.
Frequency range AC: 45…65 Hz.
Input fuse (internal): Yes.
Inrush current: max. 5 A.
Nominal power consumption: 133.3 VA.
Rated input voltage: 110...240 V AC / 120...340 V DC.
Recommended back-up fuse: 5 A, DI / 6 A, Char. B / 6 A, Char C.
Surge protection: Varistor.
Output:
Connection system: Clamping yoke connection.
DCL - peak load reserve:
Boost duration: 5 s.
Multiple of the rated current: 150 %.
Boost duration: 15 ms.
Multiple of the rated current: 400 %.
Mains failure bridge-over time: > 20 ms @ 115V AC/ 230 VAC.
Nominal output current for Unom: 10 A @ 60 °C.
Output power: 120 W.
Output voltage, max.: 15 V.
Output voltage, min.: 11 V.
Output voltage, note: adjustable with potentiometer or communication module.
Parallel connection option: yes, max 10.
Protection against inverse voltage: Yes.
Ramp-up time: ≤ 100 ms.
Rated output voltage: 12 V DC ± 1 %.
Residual ripple, breaking spikes: <50 mVss @ UNenn, Full Load.
General data:
AC failure bridging time @ Inom: > 20 ms @ 230 V AC / > 20 ms @ 115 V AC.
Conformal coating: Yes.
Degree of efficiency: 90%.
Derating: > 60°C (2.5% / 1°C).
Earth leakage current, max.: 3.5 mA.
Housing version: Metal, corrosion resistant.
MTBF:
According to Standard: SN 29500.
Operating time (hours), min.: 1,500,000 h.
Ambient temperature: 25 °C.
Input voltage: 230 V.
Output power: 120 W.
Duty cycle: 100 %.
According to Standard: SN 29500.
Operating time (hours), min.: 795,000 h.
Ambient temperature: 40 °C.
Input voltage: 230 V.
Output power: 120 W.
Duty cycle: 100 %.
Power factor (approx.): > 0.85.
Power loss, idling: 5 W.
Power loss, nominal load: 13.3 W.
Protection degree: IP20.
Short-circuit protection: Yes, internal.
Surge voltage category: III, II.
EMC / shock / vibration:
Interference immunity test acc. to:
EN 55032:2015.
EN 55024:2010/A1:2015.
EN 55035:2017.
EN 61000-3-2:2014.
EN 61000-6-1:2007.
EN 61000-6-2:2005.
EN 61000-6-3:2007/A1:2011.
EN 61000-6-4:2007/A1:2011.
Noise emission in accordance with EN55032: Class B.
Shock resistance IEC 60068-2-27: 30 g in all directions.
Vibration resistance IEC 60068-2-6: 2.3 g (on DIN rail), 4 g (with direct mounting).
Insulation coordination:
Insulation voltage input / earth: 3.2 kV.
Insulation voltage output / earth: 0.5 kV.
Insulation voltage, input/output: 3.5 kV.
Pollution severity: 2.
Protection class: I, with PE connection.
Surge voltage category: III, II.
Electrical safety (applied standards):
Electrical machine equipment: Acc. to EN60204.
For use with electronic equipment: Acc. to EN50178 / VDE0160.
Protection against dangerous shock currents: Acc. to VDE0106-101.
Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
Safety transformers for switch-mode power supplies: According to EN 61558-2-16.
Connection data (input):
Conductor cross-section, AWG/kcmil, max.: 12 AWG.
Conductor cross-section, AWG/kcmil, min.: 30 AWG.
Conductor cross-section, flexible, min.: 0.2 mm².
Conductor cross-section, rigid, max.: 4 mm².
Conductor cross-section, rigid, min.: 0.2 mm².
Connection system: Clamping yoke.
Number of terminals: 3 for L/N/PE.
Screwdriver blade: 0.6 x 3.5.
Wire connection cross section, flexible (input), max.: 4 mm².
Connection data (output):
Conductor cross-section, AWG/kcmil, max.: 12 AWG.
Conductor cross-section, AWG/kcmil, min.: 30 AWG.
Conductor cross-section, flexible, max.: 4 mm².
Conductor cross-section, flexible, min.: 0.2 mm².
Conductor cross-section, rigid, max.: 4 mm².
Conductor cross-section, rigid, min.: 0.2 mm².
Connection system: Clamping yoke connection.
Number of terminals: 5 (+ + / - - -).
Screwdriver blade: 0.6 x 3.5.
Connection data (signal):
Wire connection cross-section, flexible (signal), max.: 1.5 mm².
Wire connection cross-section, flexible (signal), min.: 0.2 mm².
Wire connection method: Screw connection.
Wire cross-section, AWG/kcmil, max.: 16.
Wire cross-section, AWG/kcmil, min.: 28 mm².
Wire cross-section, solid, max.: 1.5 mm².
Wire cross-section, solid, min.: 0.2 mm².
Signalling:
Floating contact: Yes.
LED green/red: Green: Operation (failure-free).
Flashing green: advance warning I>90%.
Green/red flashing: output switched off (switch-off mode).
Flashing red: overload/error.
Status relay (max. load): Output voltage OK (30 V DC / 1 A).
Approbations:
Certificate no. (cULus): E258476.
Certificate no. (cULusEX): E470829.
Institute (cULus): CULUS.
Institute (cULusEX): CULUSEX.
