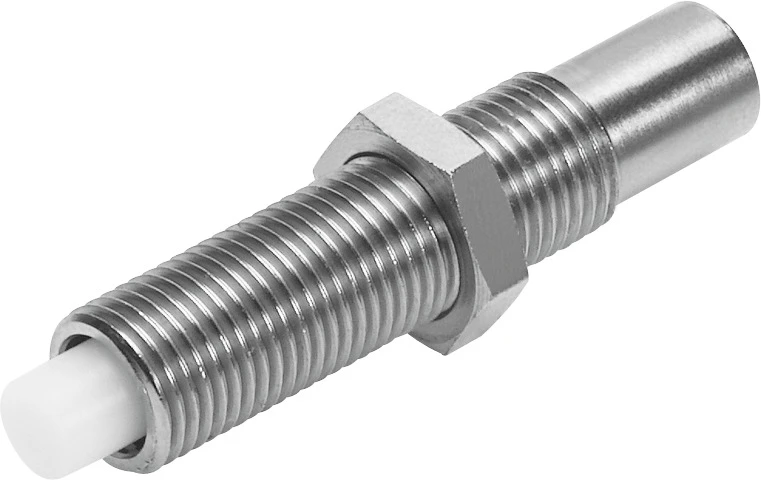

Semi-rotary drives DRRD, Accessories, Shock absorber, DYSC-20-18-Y1F
SKU: 2479149
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Accessories, Shock absorber
• Size 20
• Stroke 18 mm
• Cushioning Self-adjusting
• Mounting position optional
• Position detection Without
• Symbol 00991497
• Max. impact speed 3 m/s
• Reset time at room temperature 0.3 s
• Reset time at min. ambient temperature 1 s
• Mode of operation Single-acting, Pushing
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
