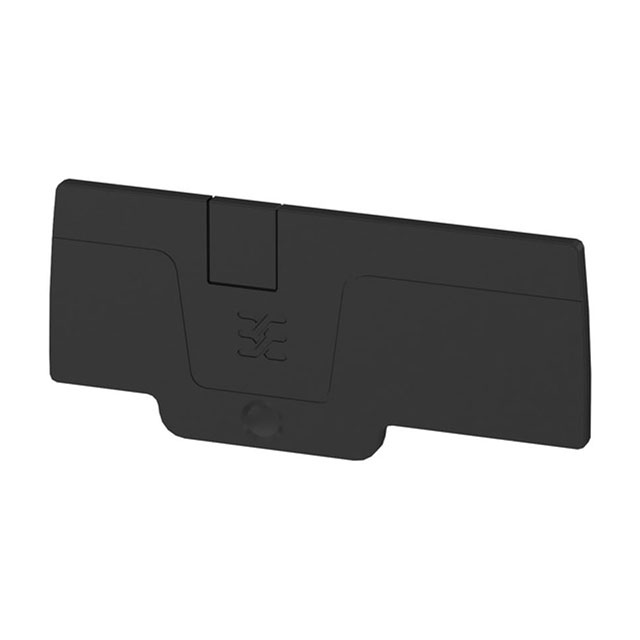

AEP 3C 4 BK End Plate
SKU: 2486640000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
End plate, A-series:
End plates are installed on the open side of the last modular terminal before the end bracket.
Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
It ensures that no live parts will come into touch with the terminal and renders the terminal finger-proof.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 32.35 mm.
Height: 71.9 mm.
Width: 2.1 mm.
Net weight: 2.55 g.
Temperatures:
Storage temperature range: -25°C - 55°C.
Continuous operating temperature, minimum: -60°C.
Continuous operating temperature, maximum: 130 °C.
Material data:
Material: Wemide.
Colour: Black.
UL 94 flammability rating: V-0.
System requirements:
Version: End plate.
Additional technical details:
Snap-on: Yes.
With snap-in pegs: Yes.
