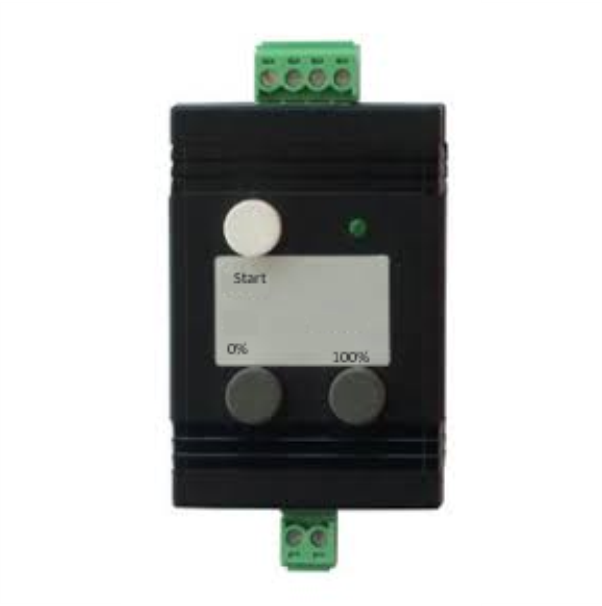

Hand programmer for analog output
SKU: 253124
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Hand-programmer for analogue output:
Simple teach-in setups for stroke length and direction on desired zero and span positions.
For sensors that only have one magnet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model Number: 253124.
Compatibility: Temposonics R-Series analogue position sensors.
Output Types:
Voltage: 0 to 10V, 10 to 0V, -10 to +10V, +10 to -10V.
Current: 4(0) to 20mA, 20 to 4(0) mA.
Minimum Controller Load:
Voltage: >5k ohms.
Current: 0/500 ohms (minimum/maximum load).
Power Supply: 24V DC.
Operating Temperature: -20°C to +60°C (-4°F to +140°F).
Housing Material: ABS plastic.
Dimensions: Compact design for easy handling and portability.
Connection: Micro USB and barrel connectors (2.1 x 5.5 mm and 2.5 x 5.5 mm).
Protection Class: IP30.
LED Indicators: For status and diagnostics.
