Cabinet programmer for analog output IP30, 24V DC
SKU: 253408
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

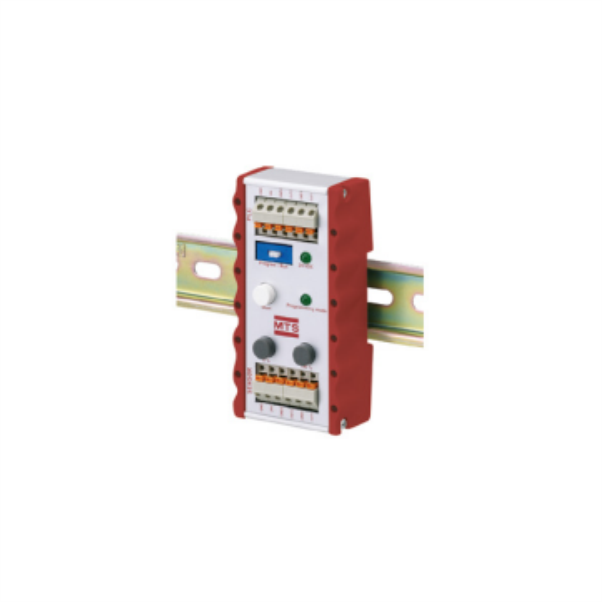

Cabinet programmer for analogue outputs:
Features a snap-in mounting on a standard DIN rail (35 mm).
This programmer can be permanently installed in a control cabinet and features a program/run switch.
For sensors with one magnet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model Number: 253408.
Compatibility: Temposonics R-Series analog position sensors.
Output Types:
Voltage: 0 to 10V, 10 to 0V, -10 to +10V, +10 to -10V.
Current: 4(0) to 20mA, 20 to 4(0) mA.
Minimum Controller Load:
Voltage: >5k ohms.
Current: 0/500 ohms (minimum/maximum load).
Power Supply: 24V DC.
Operating Temperature: -20°C to +60°C (-4°F to +140°F).
Housing Material: ABS plastic.
Dimensions: 10mm (H) x 55mm (W) x 31mm (D).
Protection Class: IP30.
Connection: Leads for direct sensor connection.
Programming Method: Simple teach-in procedure for field adjustments.
