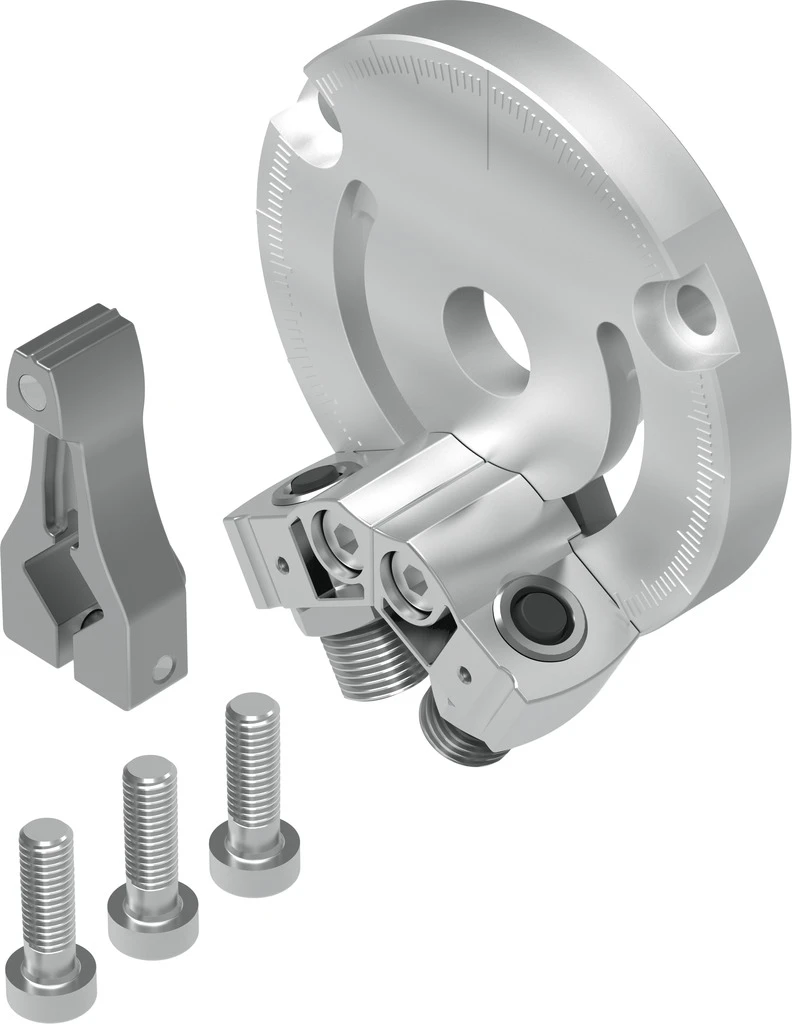

Semi-rotary drives DRVS, Accessories, DADP-ES-Q12-25
SKU: 2536504
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRVS, double-acting
• Accessories, Stop (kit)
• Size 25
• Rotation angle adjustment range 0 deg ... 270 deg
• Mounting position optional
• Fine adjustment -6 deg
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature 0 °C ... 60 °C
• Product weight 180 g
• Type of mounting With through-hole
• Note on materials RoHS-compliant
• Material stops High-alloy stainless steel
• Material lever Beryllium bronze, nickel-plated
• Material disc Anodised wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRVS, double-acting
• Modern and compact design
• Lighter than other semi-rotary drives
• Housing protected against splash water and dust
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
