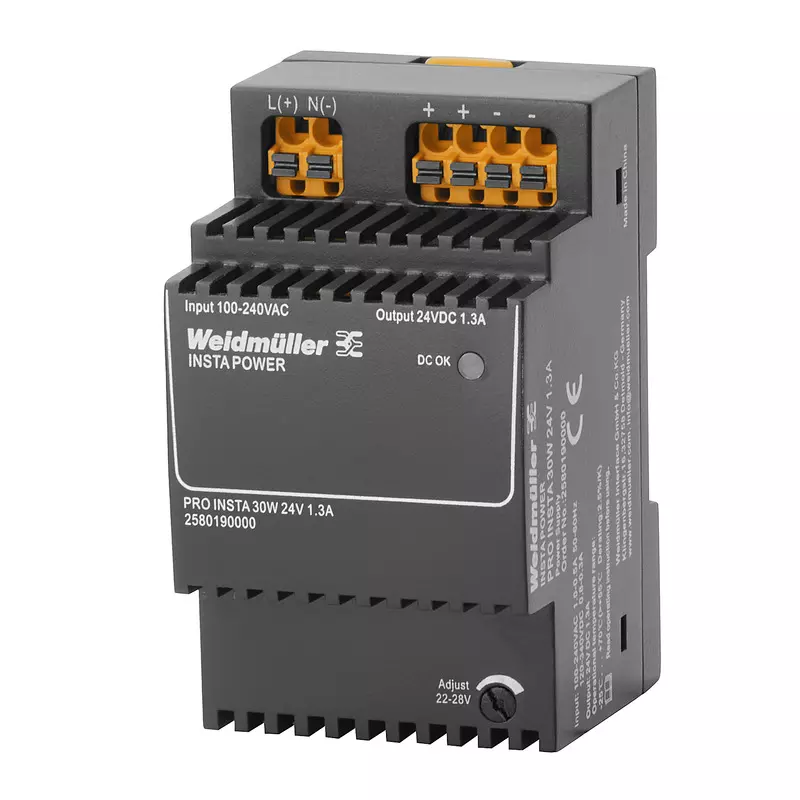

PRO INSTA 24V 01.3A 30W
SKU: 2580190000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
PRO INSTA 24V 1.3A, 30W:
INSTA-POWER's single-phase switching power supplies offer a wide power spectrum, compact construction, and excellent value.
They can withstand temperatures ranging from -25°C to +70°C, have international approvals, and accept a wide variety of voltage input.
They can therefore be used for a variety of purposes.
This also covers signal and telecommunications systems, and systems for automation with minimal power requirements of up to 96 Watts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 60 mm.
Height: 90 mm.
Width: 54 mm.
Net weight: 192 g.
Temperatures:
Storage temperature range: -40°C - 85°C.
Operating temperature range: -25°C - 70°C.
Input:
AC current consumption: 0.5 A @ 230 V AC / 1.0 A @ 100 V AC.
AC input voltage range: 85 - 264 V AC (derating at 100 V AC).
Connection system: PUSH IN with actuator.
DC current consumption: 0.2 A @ 370 V DC / 0.5 A @ 120 V DC.
DC input voltage range: 95 - 370 V DC.
Frequency range AC: 45 - 65 Hz.
Input fuse (internal): Yes.
Inrush current maximum: 40 A.
Nominal power consumption: 34.9 VA.
Rated input voltage: 110 - 240 V AC / 120 - 340 V DC.
Recommended back-up fuse: 2 A / DI, safety fuse 6 A, Char. B, circuit breaker 2 - 4 A, Char. C circuit breaker.
Wire connection method: PUSH IN with actuator.
Output:
Capacitive load: unrestricted.
Connection system: PUSH IN.
Continuous output current @ UNominal: 1.3 A @ 55 °C, 0.8 A @ 70 °C.
Nominal output current for Unominal: 1.3 A @ 55 °C.
Output current, maximum: 1.3 A.
Output power: 30 W.
Output voltage, maximum: 28 V.
Output voltage, minimum: 22 V.
Output voltage, note: (adjustable via potentiometer on front).
Ramp-up time: ≤ 100 ms.
Rated output voltage: 24 V DC ± 1 %.
Residual ripple, breaking spikes: < 50 mVss @ UNenn, Full Load.
Wire connection method: PUSH IN with actuator.
General data:
Degree of efficiency: 86%.
Housing version: Plastic, protective insulation.
Mounting position, installation notice: Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load.
Power loss, idling: 0.45 W.
Power loss, nominal load: 4.88 W.
Protection against reverse voltages from the load: 30 - 35 V DC.
Protection degree: IP20.
Short-circuit protection: Yes, internal.
Start-up: ≥ -40 °C.
EMC / shock / vibration:
Interference immunity test acc. to: EN 61000-4-2 (ESD)| EN 61000-4-3 and EN 61000-4-8 (fields)| EN 61000-4-4 (burst)| EN 61000-4-5 (surge)| EN 61000-4-6 (conducted)| EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
Limiting of mains voltage harmonic currents: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)| EN 61000-4-4 (burst)| EN 61000-4-5 (surge)| EN 61000-4-6 (conducted)| EN 61000-4-11 (dips) EN 61000-4-11 (Dips).
Noise emission in accordance with EN55032: Class B.
Shock resistance IEC 60068-2-27: 15 g in all directions.
Vibration resistance IEC 60068-2-6: 2.3 g.
Insulation coordination:
Insulation voltage input / earth: 3.5 kV.
Insulation voltage output / earth: 0.5 kV.
Insulation voltage, input/output: 4 kV.
Pollution severity: 2.
Protection class: II.
Electrical safety (applied standards):
Electrical machine equipment: Acc. to EN60204.
For use with electronic equipment: Acc. to EN50178 / VDE0160.
Protection against dangerous shock currents: Acc. to VDE0106-101.
Protective separation / protection against electrical shock: VDE0100-410 / acc. to DIN57100-410.
Safety extra-low voltage: SELV acc. to IEC 60950-1, PELV according to EN 60204-1.
Safety transformers for switch-mode power supplies: According to EN 61558-2-16.
Connection data (input):
Conductor cross-section, AWG/kcmil, maximum: 12.
Conductor cross-section, AWG/kcmil, minimum: 24.
Conductor cross-section, flexible, minimum: 0.25 mm².
Conductor cross-section, rigid, maximum: 2.5 mm².
Conductor cross-section, rigid, minimum: 0.25 mm².
Connection system: PUSH IN with actuator.
Number of terminals: 2 (L, N).
Wire connection cross section, flexible (input), max.: 2.5 mm².
Connection data (output):
Conductor cross-section, AWG/kcmil, maximum: 12.
Conductor cross-section, AWG/kcmil, minimum: 24.
Conductor cross-section, flexible, maximum: 2.5 mm².
Conductor cross-section, flexible, minimum: 0.25 mm².
Conductor cross-section, rigid, maximum: 2.5 mm².
Conductor cross-section, rigid, minimum: 0.25 mm².
Connection system: PUSH IN.
Number of terminals: 4 (++ / --).
Signalling:
LED green: Operating voltage OK.
Approbations:
Certificate no. (cULus): E258476.
Institute (cULus): CULUS.
