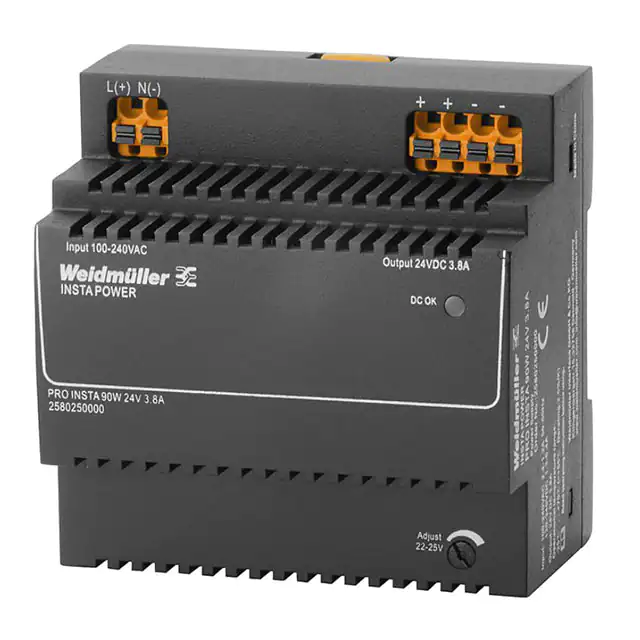

PRO INSTA 24V 3.8A 90W
SKU: 2580250000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Switch-mode power supply unit, 24 volts:
The single-phase INSTA-POWER switching power supplies are distinguished by their broad power spectrum, compact design, and excellent value for money.
They can withstand temperatures ranging from -25°C to +70°C, have international approvals, and accept a wide variety of voltage input.
They can therefore be used for a variety of purposes.
This also covers signal and telecommunications systems, and also systems for automation with minimal power requirements of up to 96 Watts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions: (D) 60mm x (H) 90mm x (W) 90mm.
Net weight: 352 g.
Temperature:
Storage temperature: -40 °C - 85 °C.
Operating temperature : -25 °C - 70 °C.
Ambient temperature: 25 - 40 °C.
Start-up: ≥ -40 °C.
Degree of efficiency: 87 %.
Housing version: Plastic, protective insulation.
According to Standard: Telcordia SR-332.
Operating time (hours), min.: 619,000 h.
Input voltage: 230 V.
Output power: 90 W.
Duty cycle: 100 %.
According to Standard: Telcordia SR-332.
Power loss, idling: 0.45 W.
Power loss, nominal load: 11.7 W.
Protection against reverse voltages from the load: 30…35 V DC.
Protection degree: IP20.
Short-circuit protection: Yes internal.
