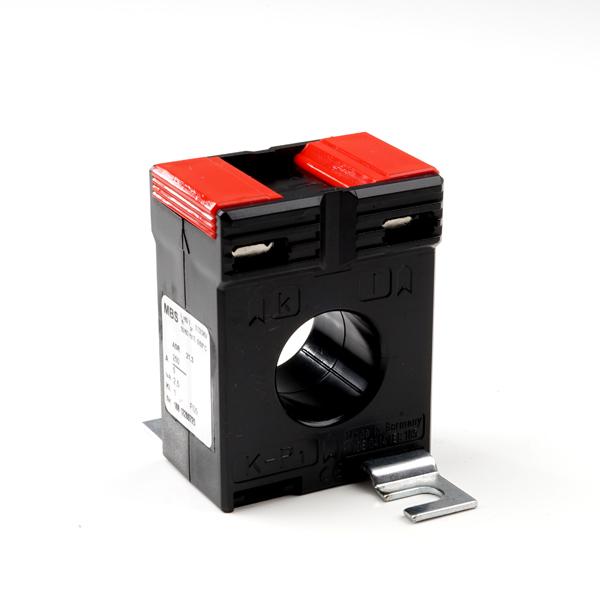

ASR 20.3 50/5A RING CT cl 1
SKU: 26027
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers for current General details:
Class of isolation: E.
Operating voltage maximum: Um < 0.72 kV.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Tube/ring type current transformers (5A secondary - class 1),
ASR 20.3 tube current transformers,
MODEL ASR 20.3,
RATIO 50/5A,
ROUND CONDUCTOR (⌀) 21 mm,
DESCRIPTION Tube current transformer,
CLASS 1,
VA 1,
DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
