SFX-DT 11/60 MC NE BL
SKU: 2602730000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
We provide our customers in the food sector with detectable marking solutions to ensure the high standards needed by the HACCP concept.
Because of a metallic infill, our detectable multi-cards may be accurately identified by metal and X-ray detectors.
By doing this, the possibility of product contamination during manufacture is reduced.
Important product qualities such as corrosion resistance or increased ageing resistance to UV radiation in indoor spaces and heat ensure maximum safety.
Our own recognized laboratory periodically tests and verifies these qualities.
Not meant for direct contact with food.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Detectable by metal and X-ray detectors.
Visually recognisable by blue colour.
Corrosion resistant metallic filler.
Clear and resistant print image.
Available in different versions for a wide variety of marking requirements.
Specifications:

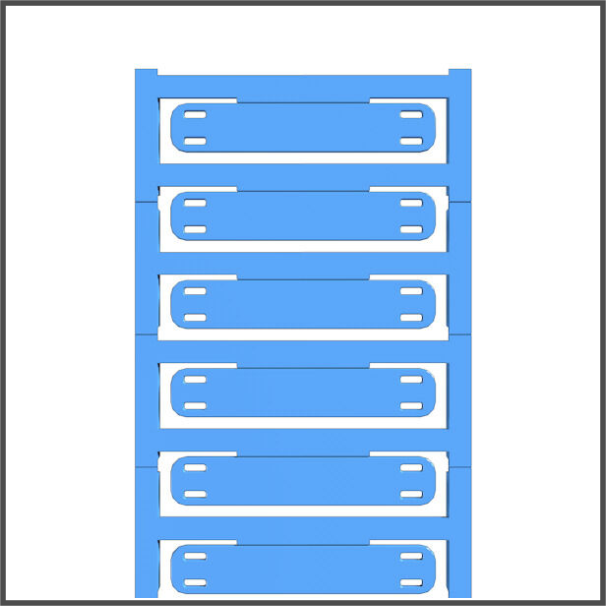

Version: Conductor and cable markers, 7 - 40 mm, 60 x 11 mm, blue.
Quantity: 60.
Depth: 0.8 mm.
Height: 60 mm.
Width: 11 mm.
Operating temperature range: -40...100 °C.
Colour: blue.
Detectible in accordance with Rondo test: 4.7 mm Al.
No Halogen.
Material: Polyamide 66.
Number of markers per combination: 1 multi-Card = Conductor and cable markers.
Printed characters: neutral.
Size of labelling field: 44 x 11 mm.
UL 94 flammability rating: HB.
Version: Installation with cable ties.
Conductor and cable markers:
Conductor O.D.: 7 - 40 mm.
Conductor O.D., max.: 40 mm.
Conductor O.D., min.: 7 mm.
Conductor cross-section, max.: 500 mm².
Conductor cross-section, min.: 16 mm².
Cross-section for connected wire: 16 - 500 mm².
