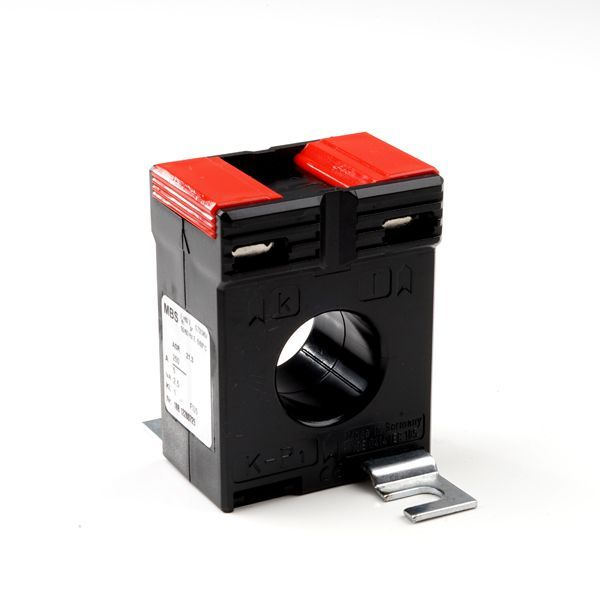

ASR 20.3 100/5A RING CT cl 1
SKU: 26035
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers of current overall characteristics:
E is the isolation class.
Maximum working voltage: 0.72 kV or less.
50 Hz is the nominal frequency: alternative frequencies available upon request.
Ith = 60 x In represents the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Tube/ring type current transformers (5A secondary - class 1),
ASR 20.3 tube current transformers,
MODEL ASR 20.3,
RATIO 100/5A,
ROUND CONDUCTOR (⌀) 21 mm,
DESCRIPTION Tube current transformer,
CLASS 1,
VA 2.5,
DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
