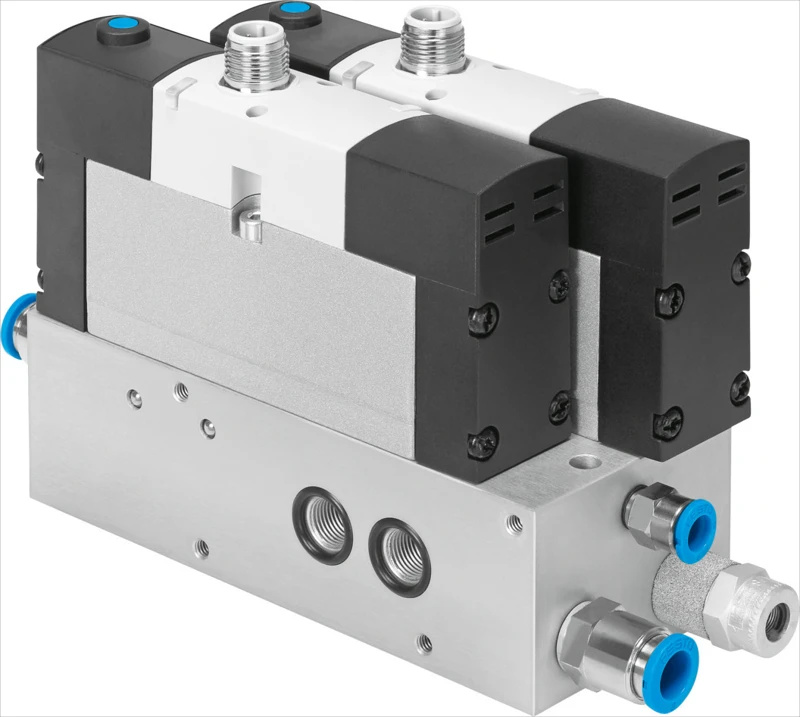

Sub-base, VABP-S3-26V1G-G18-2M-R3
SKU: 2605075
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Sub-bases VABP, With valves
• Construction width 26 mm
• Function port 32 G1/8
• Function port 34 G1/8
• Pneumatic port 22 Sub-base, G1/8
• Pneumatic port 44 Sub-base, G1/8
• Mounting position optional
• Operating pressure 0 bar ... 16 bar
• Pilot pressure 3 bar ... 8 bar
• Standard nominal flow rate (standardised to DIN 1343) 800 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [6:4:4]
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Media temperature 0 °C ... 50 °C
• Ambient temperature 0 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Sub-bases VABP
• The sub-base VABP can be used to help implement specific switch-off behaviour when switching off the valve load voltage.
• It is a single-channel solution for uncoupling the drive from the power valve.
• 4 switch-off functions are possible.
• The sub-base is not a safety device, nor is it a complete safety solution. However, it can form part of a safety solution.
• Compact design
• Simple installation
• Suitable for servo-pneumatic drives
• Can be attached directly to the proportional directional control valve VPWP
• Connecting cable for direct connection to the proportional directional control valve VPWP
• Suitable for cylinders that are controlled by 5/2- or 5/3-way valves
• For ISO valves with spring return and external auxiliary pilot air
• Extended range of accessories:
• ISO solenoid valves with switching position sensing for producing a diagnostic rate > 60%
