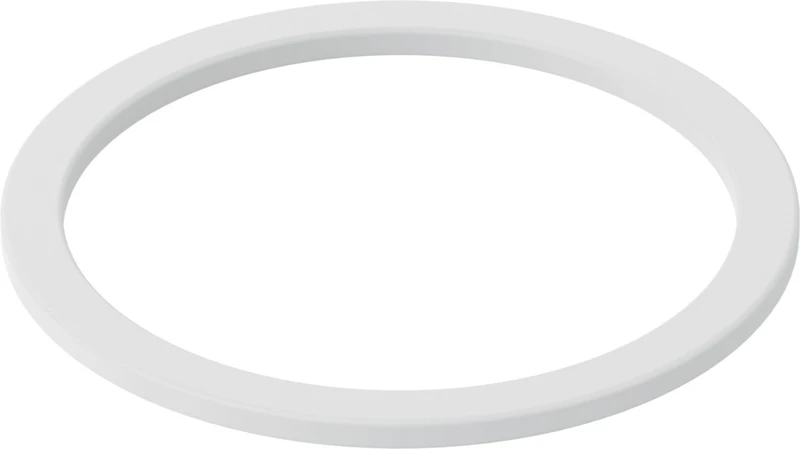

Sealing ring, NPAS-C1-R-G14-P-FD-P10

Specifications • Sealing material, Sealing ring • Size of pack 10 • Mounting position optional • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa • Operating pressure complete temperature range -0.95 bar ... 12 bar • Operating pressure complete temperature range -13.775 psi ... 174 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free), Water vapour • Note on operating and pilot medium Lubricated operation possible • LABS (PWIS) conformity VDMA24364-B2-L • Suitable for use with food See supplementary material information • Ambient temperature -20 °C ... 120 °C
