UV21-B-IPC-2001
SKU: 2665810000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

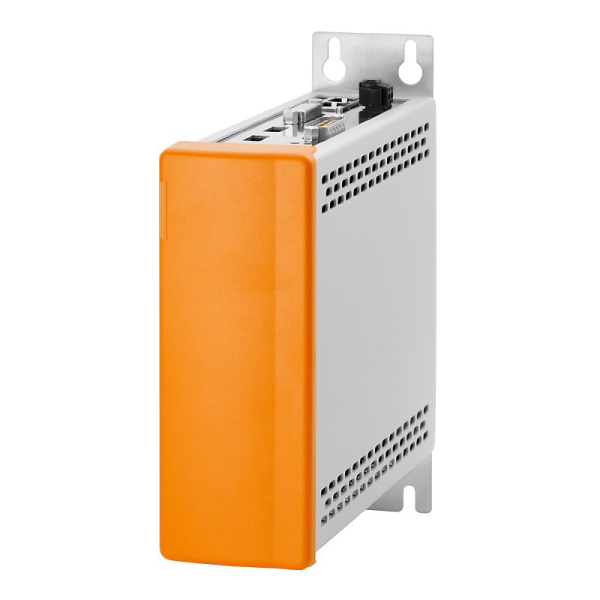

The compact IPC 2000 is a fan-less industrial PC designed for wall and rail mounting.
With two Ethernet 10/100/1000Mbps connections, a USB 3.0 connection, a USB 2.0 connection, and a DVI video output, you can connect old and new systems.
The IPC 2000 can store data on up to 120GB SSD hard drives and has an integrated CFast card slot that is secured by a front flap.
The all-rounder is equipped with the Intel Celeron J1900 2GHz 64-bit quad core processor, 4GB RAM, and the optional Windows 10 IoT Enterprise 2019 operating system, making it suitable for a wide range of applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weight:
Depth: 182 mm.
Height: 185 mm.
Width: 54.3 mm.
Net weight: 1,000 g.
Temperatures:
Storage temperature: -10 °C ... +60 °C.
Operating temperature: 0 °C ... +50 °C.
Humidity: 80 % relative humidity (without condensation).
Current consumption:
Voltage: 24 V.
Current: 0.92 A.
Operating system: no pre-installed operating System.
Protection degree: IP20.
Voltage supply: 24 V DC (18-32 V DC) isolated.
System Data:
Interfaces above: 2 x Ethernet 10/100/1000 MBit/s (RJ45), 1x USB 2.0, 1x USB 3.0, 1x DVI-D.
Interfaces in front: 1x Cfast slot.
Memory: 60 GB mSATA SSD.
Memory (RAM): 4 GB, DDR3.
Operating system: no pre-installed operating System.
Processor: Intel® Celeron® J1900 - Quad Core 2.0 GHz (2.42 GHz Burst).
