UV20-B-IPC-3031.01
SKU: 2665820000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

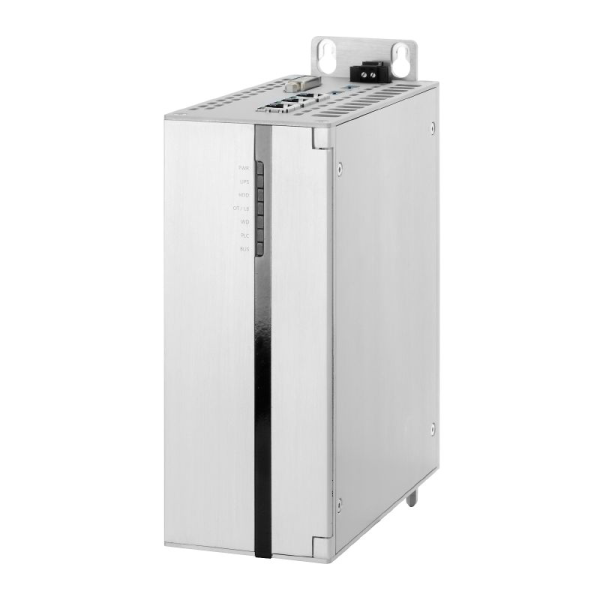

The fan-less IPC 3000 is a durable and high-performance industrial PC that meets the most stringent performance, design, and adaptability requirements.
There are three Ethernet 10/100/1000Mbps connectors, two USB 3.0 ports, and one DVI visual output on top.
Another USB 3.0 connector, a CFast card slot, a CMOS battery compartment, and system/status LEDs are located on the front, protected by the front flap.
SSD hard drives with up to 120GB of storage and entirely passive cooling improve longevity while also increasing data processing speed.
With the Windows 10 IoT Enterprise 2019 operating system as an ideal and versatile working platform, the IPC 3000 provides a highly functional and flexible industrial computer system.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weight:
Depth: 159.5 mm.
Height: 220 mm.
Width: 71 mm.
Net weight: 1,800 g.
Temperatures:
Storage temperature: -10 °C ... +60 °C.
Operating temperature: 0 °C ... +50 °C.
Humidity: 80 % relative humidity (without condensation).
Current consumption:
Voltage: 24 V.
Current: 1.96 A.
Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
Protection degree: IP20.
Voltage supply: 24 V DC (18-32 V DC) isolated.
Battery: Type CR2032.
Interfaces above: 3x Ethernet 10/100/1000 MBit/s (RJ45), 2x USB 3.0, 1x DVI-D.
Interfaces in front: 1x Cfast slot, 1x USB 3.0.
Memory: 120 GB mSATA SSD.
Memory (RAM): 8 GB, DDR4.
Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
Processor: Intel® Core™ i7-6600U - Dual Core 2.6 GHz (3.4 GHz Turbo).
