UV66-ADV-7-IPPC-1001.01
SKU: 2665830000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

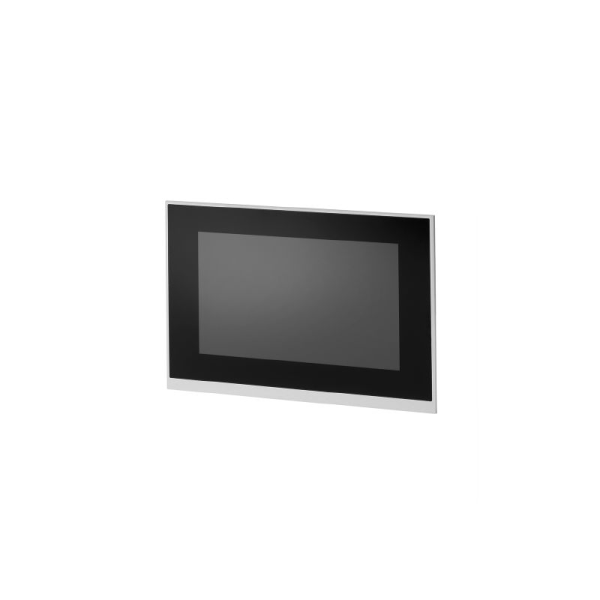

The built-in IPPC 1000 is an entry-level industrial panel PC.
Operating touch panels range in size from 7" to 15.6" and feature resistive single- or capacitive multi-touch (BASIC or ADVANCED versions).The IPPC 1000 provides cutting-edge connectivity with two Ethernet 10/100/1000Mbps ports that feature "Wake on Lan" and several USB ports.
The IPPC 1000 has a 60GB SSD hard drive and a CFast card port for external storage.
The IPPC 1000 product series, powered by the Intel Celeron™ J1900 2GHz 64-bit quad-core processor, 4GB RAM memory, and Windows 10 IoT Enterprise 2019 operating system, offers versatile applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and Weights:
Depth: 77.6 mm.
Height: 148 mm.
Width: 204 mm.
Wall thickness, min.: 2 mm.
Wall thickness, max.: 6 mm.
Net weight: 1,800 g.
Temperatures:
Storage temperature: -20 °C ... +60 °C.
Operating temperature: 0 °C ... +50 °C.
Humidity: 80 % relative humidity (without condensation).
Current consumption:
Voltage: 24 V.
Current: 1.13 A.
Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
Protection degree: IP66.
Voltage supply: 24 V DC (18-32 V DC) isolated.
Interfaces behind: 2 x Ethernet 10/100/1000 MBit/s (RJ45), 1x USB 3.0, 3x USB 2.0, 1x Cfast slot.
Memory: 60 GB mSATA SSD.
Memory (RAM): 4 GB, DDR3.
Operating system: Windows 10 IoT Enterprise LTSC 2019 64bit.
Processor: Intel® Celeron® J1900 - Quad Core 2.0 GHz (2.42 GHz Burst).
Equipment:
Angle (horizontal): Left: 80° / Right: 80°.
Angle (vertical): Top: 80° / Bottom: 80°.
Luminance: 400 cd/m².
Material display: Glass.
Material frame: Aluminium.
Number of displayable colours: 16 M.
Resolution: 800 x 480.
Size: 7".
Touch-Screen: capacitive, Multitouch.
