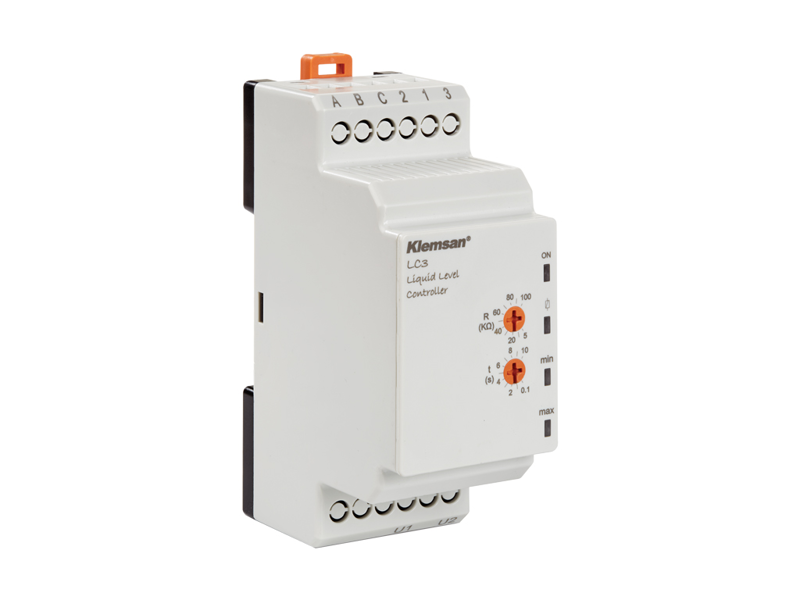

MODULAR LIQUID LEVEL CONTROLLER
SKU: 270001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
LIQUID LEVEL CONTROLLER
Casing Width (mm): 36
Connections Screw: Terminal
Functions: LC
Type of Output: Relay
Sensitivity Adjustment Rate: 5 - 100 KΩ
Supply Frequency: 35-70 Hz
Recovery Time Max.: 100ms
Protection Class: IP20
Weight (g): 82
Mounting Type: Panel and Rail
Buy currently uses Select Automation shop pricing and checkout.
Auxiliary Contacts:
Type: 1 C/O (SPDT)
Max. Ratings - AC (for NO side): 5A/250V; 1250VA
Max. Ratings - DC (for NO side): 5A/30VDC; 150W
Mechanical Lifetime: 10 operations
Time Range:
Timing-1: 1s => 1s
Supply Voltage:
AC 150-500VAC
Ambient Conditions:
Operating Temperature: -20 to + 60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
Power Consumption: AC:<7VA
