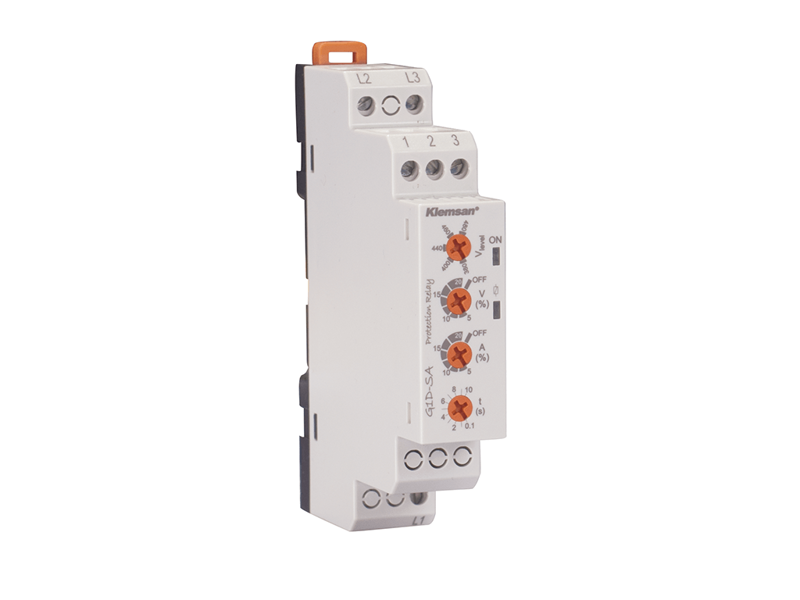

3PH VOLTAGE MONITORING RELAY
SKU: 270140
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
G1D-SA - 3 phase (L1-L3)
Casing Width (mm): 17.5
Connections: Screw terminal
Network: 3Ø without neutral
Response time for monitoring any function: Max. 250ms
Type of output: Relay
Supply Frequency: 50-60Hz
Operating Frequency: 50-60Hz
Protection class: IP20
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Phase Failure:
Fixed Delay Time: 500ms
Adjustable/Fixed Unbalanced Protection:
Range/Limit: ± (5% => 20%)/OFF
Hysteresis: 3% x Un ≈ 12 VAC
Delay Time: 0.1=>; 10s
Adjustable Voltage Protection:
Upper Limit: + (5% => 20%)/OFF
Lower Limit: -(5% => 20%)/OFF
Hysteresis: 6 VAC
Delay Time: 0.1=>10s for off delay operation
Auxiliary Contacts:
Type: 1 C/O (SPDT)
Max. Ratings - AC (for NO Side): 10A/250V; 1250 VA
Max. Ratings - DC (for NO Side): 5A/30VDC; 150W
Mechanical Lifetime: 107 operations
Electrical Lifetime Operations (for NO Side): 5×104 (5A at 250VAC) 1×105 (5A at 30VDC)
Supply Voltage:
AC: 380-480VAC ±25% from L1-L3
Ambient Conditions:
Operating Temperature: -20 to +60 °C
Storing Temperature: -40 to +75 °C
Relative Humidity (No Condensation): Max.95%
Power Consumption: AC: 4VA
Mounting Type:
EMC-EMI: OK
Packing Unit: 1
Weight (g): 66
