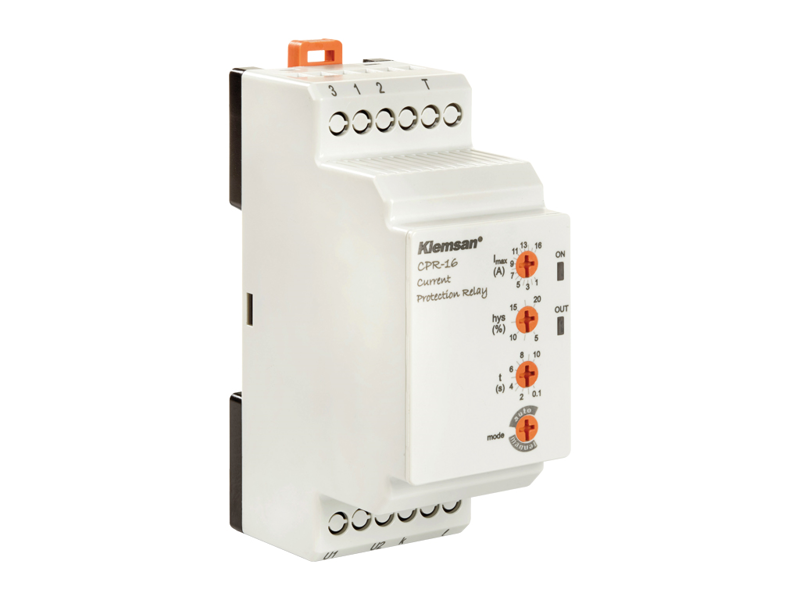

MODULAR CURRENT MONITORING RELAY
SKU: 270270
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
CPR CURRENT MONITOR PROTECT RELAYS
Casing Width (mm): 36
Connections: Screw Terminal
Response Time for Monitoring Any Function Max: 100ms
Type of Output: Relay
Supply Frequency: 35-70Hz
Control Input Voltage Range: Same with supply voltage
Operating Frequency: 35-70Hz
Protection Class: IP20
Mounting Type: Panel or Rail
Weight(g): 95
Buy currently uses Select Automation shop pricing and checkout.
Adjustable Current Protection:
Upper Limit: 1 => 16AAC arası
Hysteresis: 5 => 20% x Upper limit
Delay Time: 0.1 => 10 sec
Auxiliary Contacts:
Type: 1 C/O (SPDT)
Max. Ratings - AC (for NO Side): 16A/250V; 4000VA
Mechanical Lifetime: 107 operations
Electrical Lifetime Operations (for NO Side): 1x105
Supply Voltage:
DC: 24-300VDC
AC: 36-300VAC
Ambient Conditions:
Operating Temperature: -20°C +60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
Power Consumption:
DC: 1W
