MULTI-FUNCTION PULSE CONTROLLED TIMER
SKU: 270354
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
MODULAR TIMER MULTIFUNCTION (PULSE CONTROL)

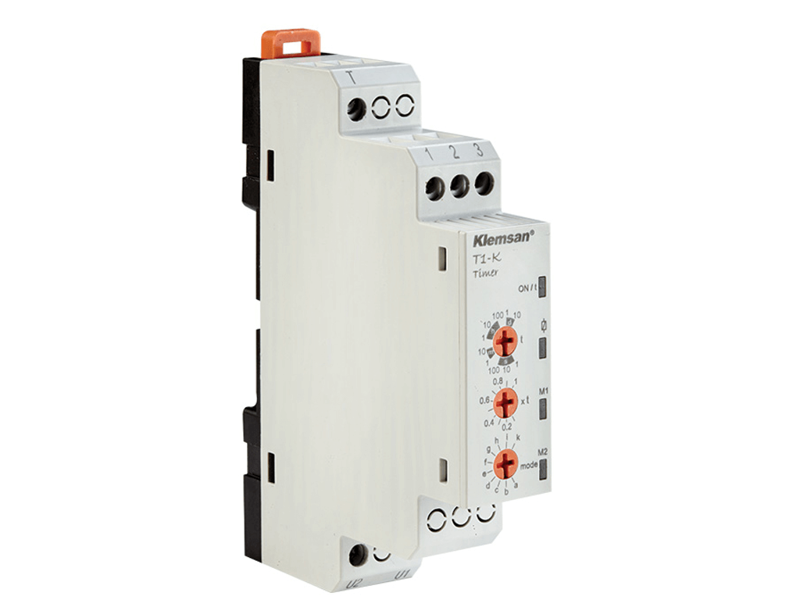

T1-K Multi-function modular timer (pulse controlled)
Casing Width (mm): 17,5
Connections: Screw Terminal
Functions: a, b, c, d, e, f, g, h, i, k
Type of Output: Two Relays
Supply Frequency: 35-70 Hz
Trigger Input Voltage: 24-300VAC/DC.
Recovery Time Max: 100ms
Protection Class: IP20
Weight (g): 66
Mounting Type: Panel and Rail
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Auxiliary Contacts:
Type: 1 C/O (SPDT)
Max. Ratings - AC (for NO side): 5A/250V; 1250VA
Max. Ratings - DC (for NO side): 5A/30VDC; 150W
Mechanical Lifetime: ≥ 107 operations
Electrical Lifetime Operations (for NO side): 5x104 (5A at 250VAC) 1x 105 (5A at 30VDC)
Time Range:
Timing-1: 1s => 60s
Supply Voltage:
DC: 24-300VDC
AC: 24-300VAC
Ambient Conditions:
Operating Temperature: -20 to + 60°C
Storing Temperature: -40°C +75°C
Relative Humidity (No Condensation): Maks. 95%
Power Consumption:
DC: 1.25W
AC: 2.5VA
