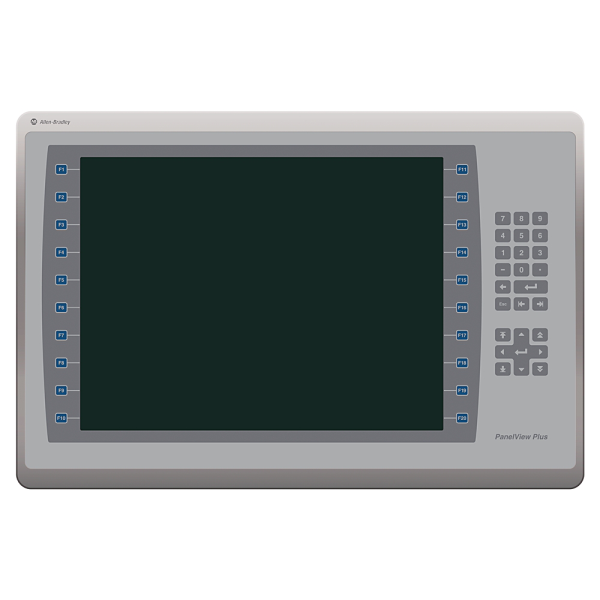

PanelView Plus 7 Graphic Terminal
SKU: 2711P-B7C22D9P-B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PanelView™ Plus 7 Standard terminals are operator interface devices.
They monitor and operate devices connected to ControlLogix® 5570 and CompactLogix™ 5370 controllers via an EtherNet/IP network.
Animated graphic and text displays allow operators to see how a machine or process is performing.
Operators interface with the control system via touch screen input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operator input: Touch with keypad.
Display type: TFT Colour.
Display size, diagonal: 6.5-in.
Viewing area (W x H): 132 x 99 mm (5.2 x 3.9 in.).
Display resolution: Series A) 640 x 480 VGA, 18-bit color graphics. (Series B) 640 x 480 VGA, 24-bit color graphics.
Aspect ratio: 4:3.
Brightness, typical: 300 cd/m2 (nits) or more.
Backlight life: White light-emitting diode, solid-state, Life: 50,000 h min at 40 °C (104 °F) to half-brightness.
Touch screen: Analog resistive, Actuation rating: 1 million presses, Operating force: 100 grams.
Battery (real-time clock backup): Accuracy: ±2 minutes per month. Battery life: 4 years min at 25 °C (77 °F).
Memory, System, User: (Series A) 512 MB RAM and 512 MB storage 80 MB, approx., nonvolatile storage for applications. (Series B) 4 GB RAM and 19.87 GB storage 2 GB, approx., nonvolatile storage for applications.
Secure Digital (SD) card slot: One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards.
USB ports, Host, Device: (Series A) Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage. One high-speed 2.0 device port (type B) that will be functional in a future release. (Series B) One USB high-speed 3.0 host port and one USB 2.0 host port (Type A) supports removable flash drives for external storage. One high-speed 2.0 device port (type B) that will be functional in a future release.
Operating system: (Series A) Windows CE 6.0 with Extended Features and Microsoft Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support). (Series B) Windows 10 IoT Core.
Ethernet ports: Two 10/100Base-T, Auto MDI/MDIX Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies
Software: FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later.
Input voltage: 24V DC nom (18...30V DC).
Power consumption: Series A) 50 W max (2.1 A at 24V DC), (Series B) 29 W max.
Power supply: Supports (SELV) and (PELV) 24V DC supplies.
Weight, approx.: 1.47 kg (3.25 lb).
Dimensions, H x W x D, approx.: 179 x 285 x 69.6 mm (7.05 x 11.22 x 2.74 in.).
Cutout dimensions, H x W, approx.: 142 x 237 mm (5.59 x 9.33 in.).
